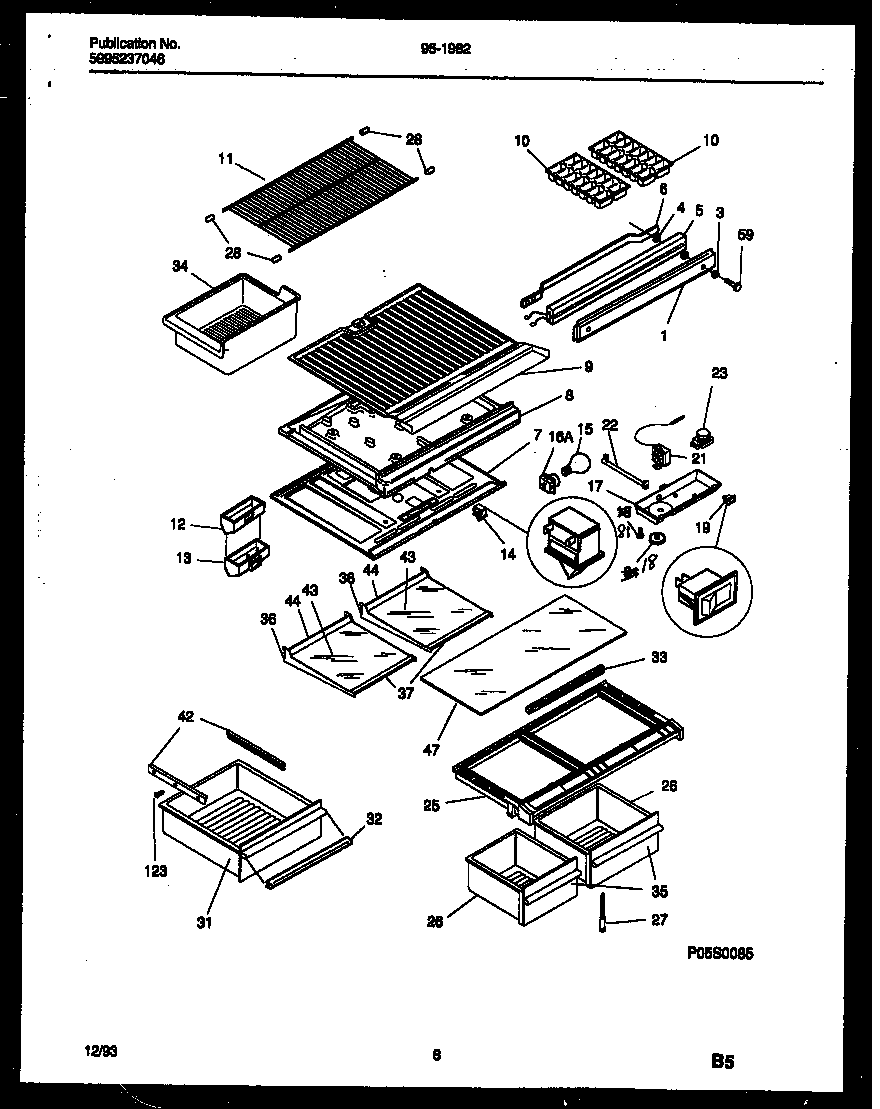

95-1982-23-01 05 – SHELVES AND SUPPORTS

95-1982-23-01 05 – SHELVES AND SUPPORTS

Written by

in

95-1982-23-01 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7TOP – REFRIGERATOR
7AWCI 5303001380
8BHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8A3205266 Frigidaire Refrigerator Edge Protector
8DIVIDER-FOAM
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303211425
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303298339
18WCI 5303206678
19SWITCH-ROCKER
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23WCI 50300187484
23A5304455649 Frigidaire Refrigerator Screw
25AWCI 5303275621
25BWCI 5303285998
25COVER – CRISPER
26WCI 5303284460
26WCI 5303284459
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
31WCI 5303284466
32WCI 5303285992
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
345303212918 Frigidaire Refrigerator Cont
35WCI 5303285991
35WCI 5303285990
36FRAME-HALF SHELF
37ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
37TRIM-HALF SHELF, FRONT
42AHANGER-PAN/BASKET, RH
42HANGER-PAN/BASKET, LH
43GLASS-SHELF, MEAT KPR SHELL
44WCI 5303210045
44ALOCK-SHELF TRIM, REAR
47INSERT-PAN COVER, GLASS
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
123CLIP-CANTILEVER SHLF
