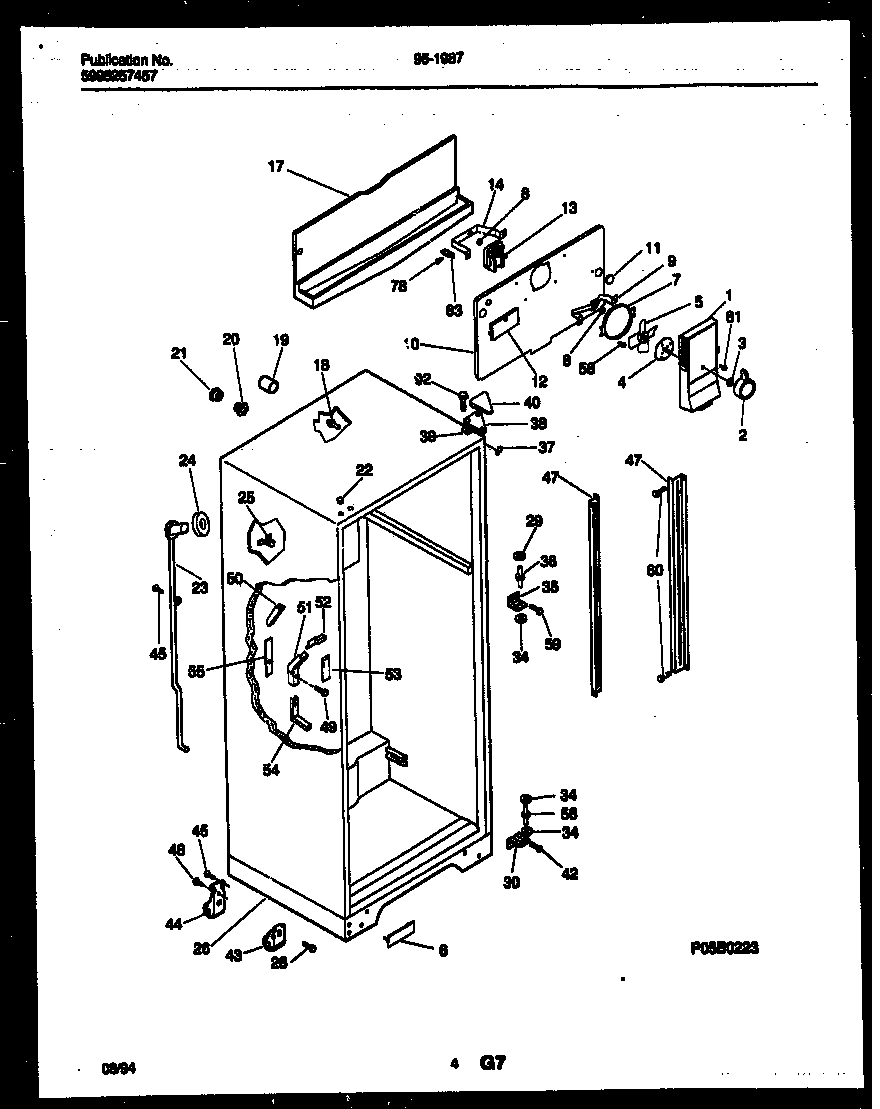

95-1987-00-04 03 – CABINET PARTS

Products

Position	Product
1	WCI 5303001496
2	WCI 5308011762
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	COVER-HOLE, LOWER HINGE
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 5308009771
10A	NUT-SPEED (2)
11	WCI 5303203044
12	BUTTON - DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	WCI 5303001470
18	SUPPORT - EVAP COVER, (2)
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, WHITE
23	WCI 5303210377
24	WCI 5303207353
25	WCI 5308000056
26	CABINET BASE
28	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
29	WASHER, .34 X .62 X .05, NYLON
30	HINGE BRACKET - BOTTOM
34	WASHER, .28 X .62 X .19, NYLON
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, WHITE
38A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	BRACKET-UPPER HINGE
39	SHIM - UPPER HINGE
40	COVER-UPPER HINGE, WHITE
42	241710601 Frigidaire Refrigerator Screw
43	WCI 5308009760
44	WCI 5308009773
45	5304455651 Frigidaire Refrigerator Screw
46	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47	CHANNEL, RH & LH
49	WCI 5308016568
50	INSULATION-AIR DUCT, UPPER
51	DUCT-MEAT KEEPER (UPPER)
52	CONTROL-DAMPER, MEAT KPR DUCT
53	LABEL-MEAT KPR DUCT
