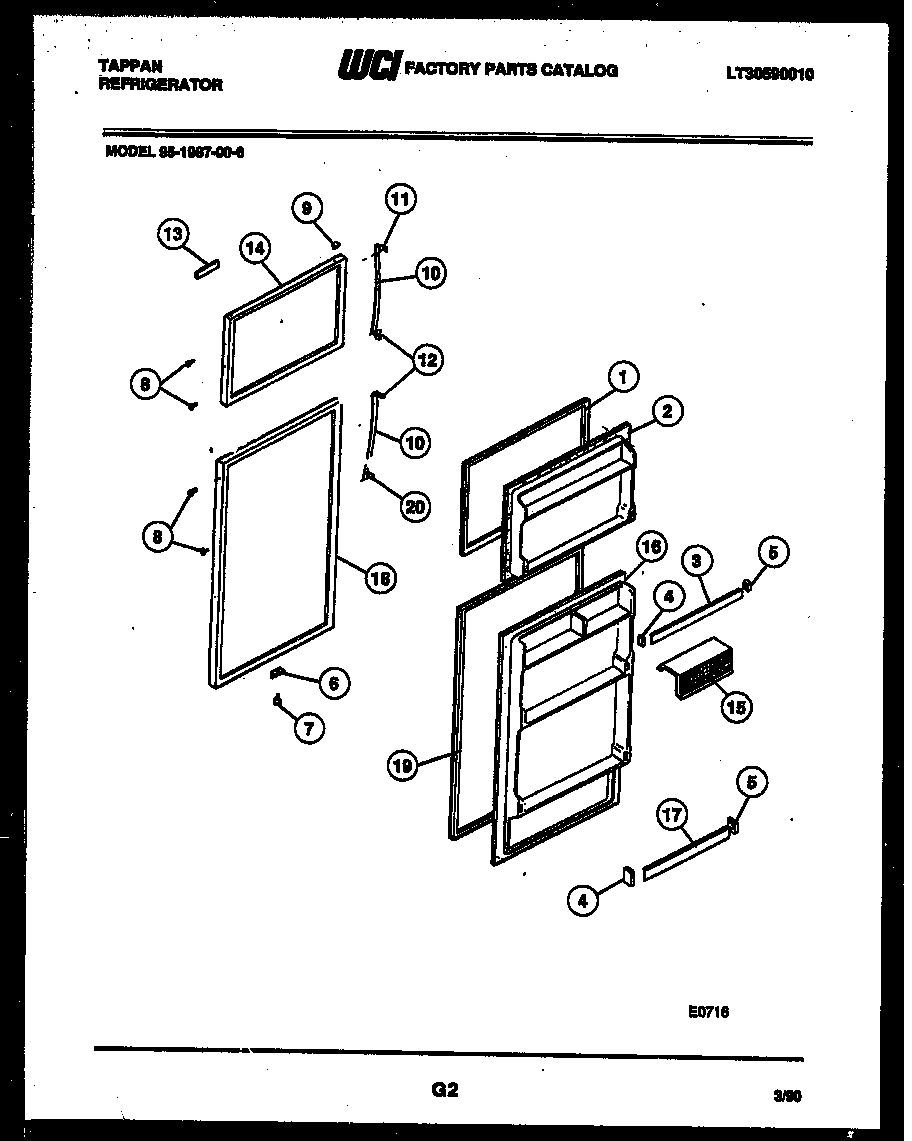

95-1987-23-06 02 – DOOR PARTS

Products

PositionProduct
*35342INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303001486
2PANEL-INNER DOOR, FRZR
3WCI 5303001484
4SUPPORT-DOOR RACK, LH
5SUPPORT-DOOR RACK, RH
6WCI 5308000255
8PLUG-BUTTON, ALMOND, HANDLE/DR STOP
9PLUG-BUTTON, ALMOND, HINGE BRG HOLE
10HANDLE-DOOR, BLACK VINYL, REFR/FRZR, (2)
11WCI 5303001297
12AWCI 5308011745
12WCI 5303001298
13FRAME-NAMEPLATE
13BTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
13AWCI 3001024
14PANEL-FRZR-OUTER-ALMOND
15DOOR-DAIRY
16WCI 5318539701
16A218843801 Frigidaire Refrigerator Screw
17WCI 5303001418
18ABEARING-HINGE
18WCI 5317869411
19GASKET-REFRIG DOOR
20WCI 5300179801
