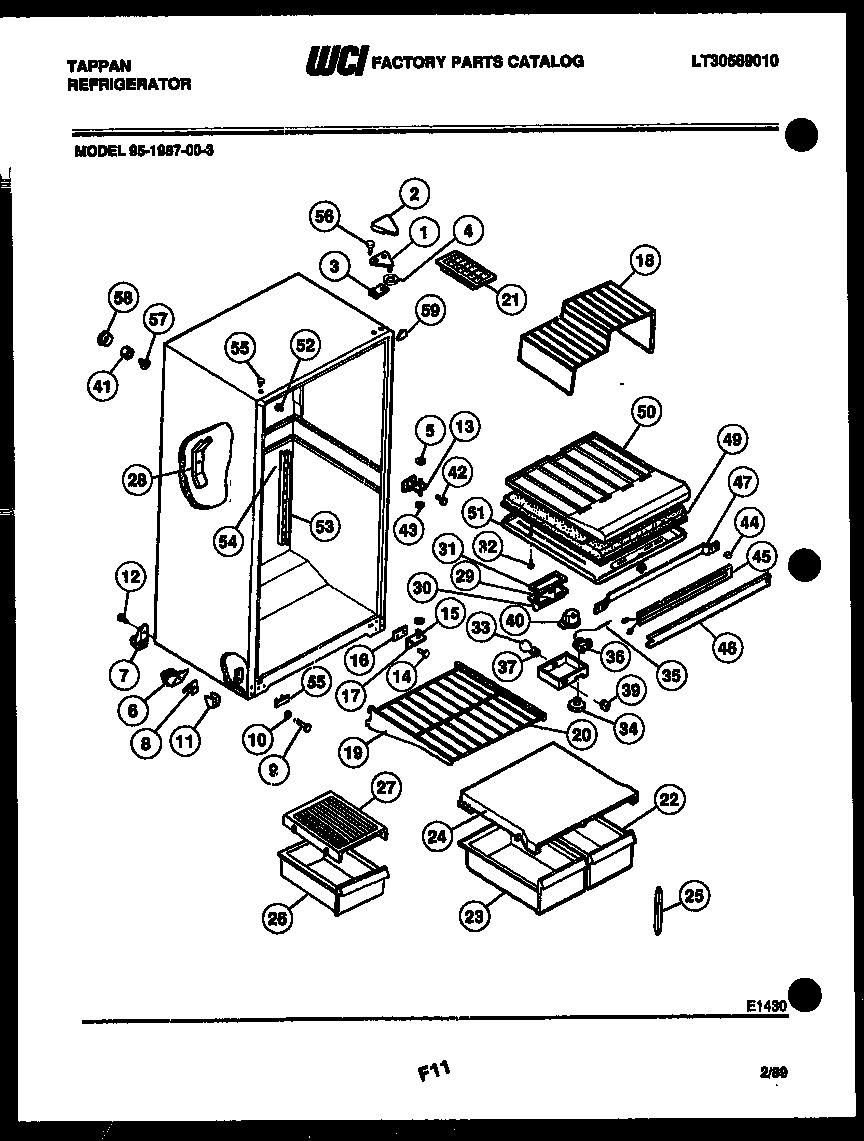

95-1987-66-03 03 – CABINET PARTS

95-1987-66-03 03 – CABINET PARTS

Written by

in

95-1987-66-03 03 – CABINET PARTS

Products

PositionProduct
1WCI 3001298
2WCI 3001665
3SHIM-TOP HINGE
4WCI 3001299
5WCI 3001038
6ROLLER-FRONT (2)
7ROLLER-REAR (2)
8SPRING-ROLLER ADJ (2)
9SCREW-ROLLER ADJUSTMENT
10WASHER-NYLON (2)
11SUPPORT-ROLLER (2)
12BOLT 1/4-28 (2)
13PIN-CENTER HINGE
14241710601 Frigidaire Refrigerator Screw
155303001321 Frigidaire Refrigerator Lower Hinge Pin
16SHIM-BOTTOM HINGE
17BRACKET-BOTTOM HINGE
18SHELF-FREEZER STEP
19WCI 3001491
20TRIM-REFR SHELF, SNAP-ON, FRONT, (3)
21215667501 Frigidaire Refrigerator Ice Tray Primary
22PAN-CRISPER, RIGHT SIDE
23PAN-CRISPER, LEFT SIDE
24WCI 3001493
25SUPPORT-PAN COVER
26WCI 3001494
27WCI 3001495
28DWCI 3001445
28WCI 3001441
28CWCI 3001444
28AWCI 3001442
28BWCI 3001443
28ELABEL-MEAT KPR DUCT
29WCI 3001447
30WCI 3001448
315303001449 Frigidaire Refrigerator Seal
32SCREW MOUNTING (3) (NON-ILLUSTRATED)
33316538904 Frigidaire Oven Lamp Light
34ASCREW-MOUNTING (NON-ILLUSTRATED)
345304455649 Frigidaire Refrigerator Screw
34WCI 3001335
35WCI 3001263
36CONTROL-TEMPERATURE
37WCI 3001267
38AWCI 3001339
38CONTROL BOX
39SWITCH, SLIDE
40215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
41WCI 3001198
42SCREW, HINGE (4) NO. 10-24 X 7/8
43HINGE BRACKET CENTER
44SPACER (NON-ILLUSTRATED)
45WCI 3001467
46WCI 3001468
47STRAP–MULLION MOUNTING
485309918806 Frigidaire Refrigerator Light Switch Door
48AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
49DIVIDER-STYROFOAM
50BOTTOM PANEL-FREEZER
51WCI 3001506
52SUPPORT COIL COVER
53CHANNEL-RS & LS
545304455852 Frigidaire Refrigerator Screw
55WCI 3001478
57WCI 3001286
58WCI 3001287
59TRIM, CAB. COR. WEAT (4)
