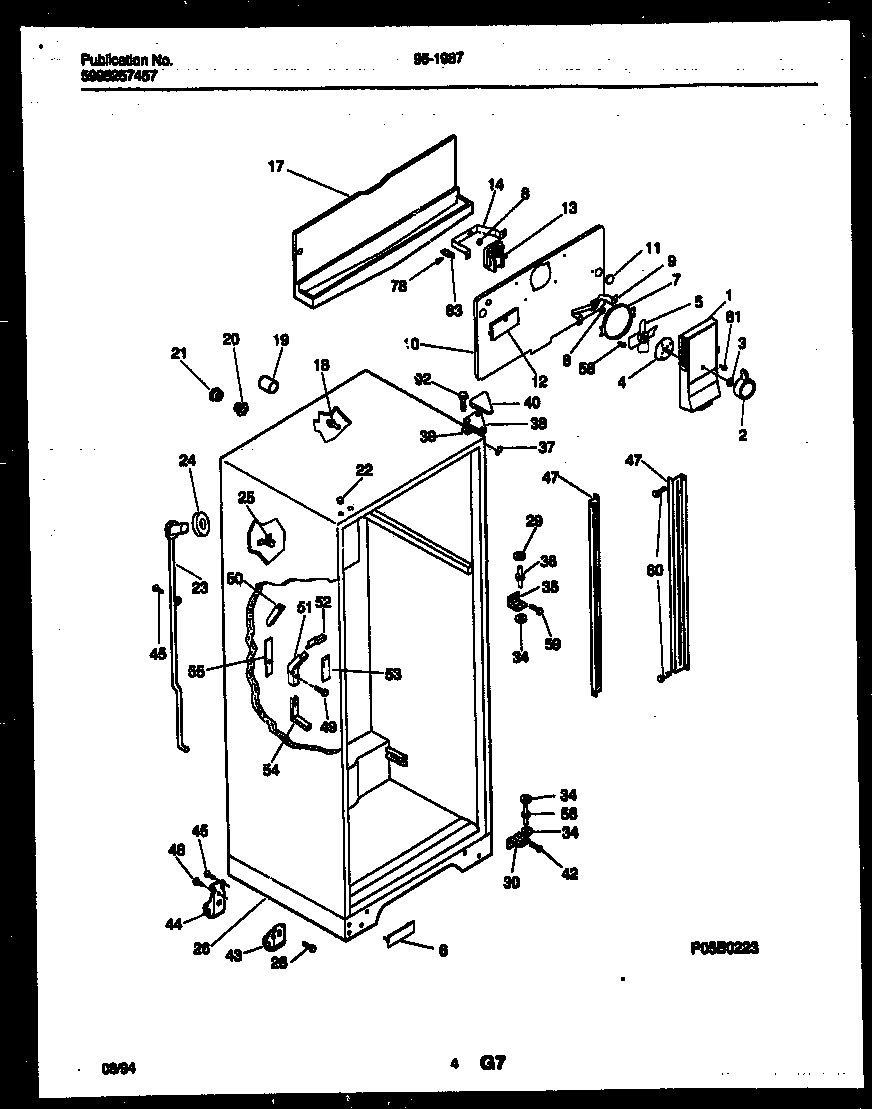

95-1987-66-04 03 – CABINET PARTS

95-1987-66-04 03 – CABINET PARTS

Written by

in

95-1987-66-04 03 – CABINET PARTS

Products

PositionProduct
1WCI 5303001496
2WCI 5308011762
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6COVER-HOLE, LOWER HINGE
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 5308009771
10ANUT-SPEED (2)
11WCI 5303203044
12BUTTON – DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22BUTTON-HINGE-WHEAT
23WCI 5303210377
24WCI 5303207353
25WCI 5308000056
26CABINET BASE
28BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
29WASHER, .34 X .62 X .05, NYLON
30HINGE BRACKET – BOTTOM
34WASHER, .28 X .62 X .19, NYLON
35BRACKET-CTR HINGE
36WCI 5308000184
37WCI 5303202338
38BRACKET-UPPER HINGE
38ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39SHIM – UPPER HINGE
40COVER – HINGE-WHEAT
42241710601 Frigidaire Refrigerator Screw
43WCI 5308009760
44WCI 5308009773
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47CHANNEL, RH & LH
49WCI 5308016568
50INSULATION-AIR DUCT, UPPER
51DUCT-MEAT KEEPER (UPPER)
52CONTROL-DAMPER, MEAT KPR DUCT
53LABEL-MEAT KPR DUCT
