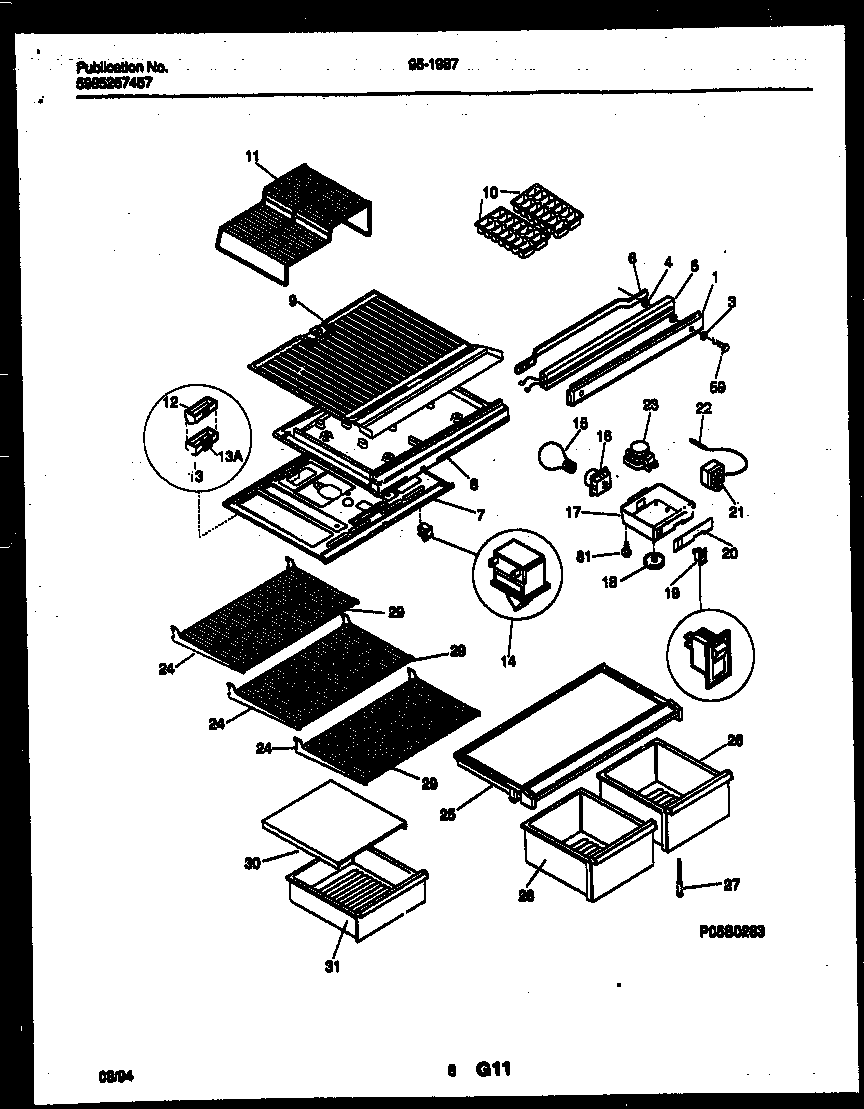

95-1987-66-04 05 – SHELVES AND SUPPORTS

95-1987-66-04 05 – SHELVES AND SUPPORTS

Written by

in

95-1987-66-04 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200368
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303270834
6WCI 5308010008
7BBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7AWCI 5303001380
7TOP PANEL-REFR, W/SNAP BUSHING
8AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
8DIVIDER, STYROFOAM
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 3018155
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17ANUT, ANCHOR (NI)
17CONTROL BOX
18KNOB-CONTROL
19SWITCH-ENERGY SAVER, SLIDE TYPE
20LABEL-CONTROL BOX
21AWCI 5303001260
21WCI 5308015762
22TUBE
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF-CANTILEVER, REFR, (3)
25WCI 5303001493
26PAN-CRISPER, LH
26PAN-CRISPER, RH
27SUPPORT-CRISPER CVR, ADJUSTABLE
29TRIM-REFR SHELF, SNAP-ON, FRONT, (3)
30WCI 3001495
31WCI 5303001494
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
