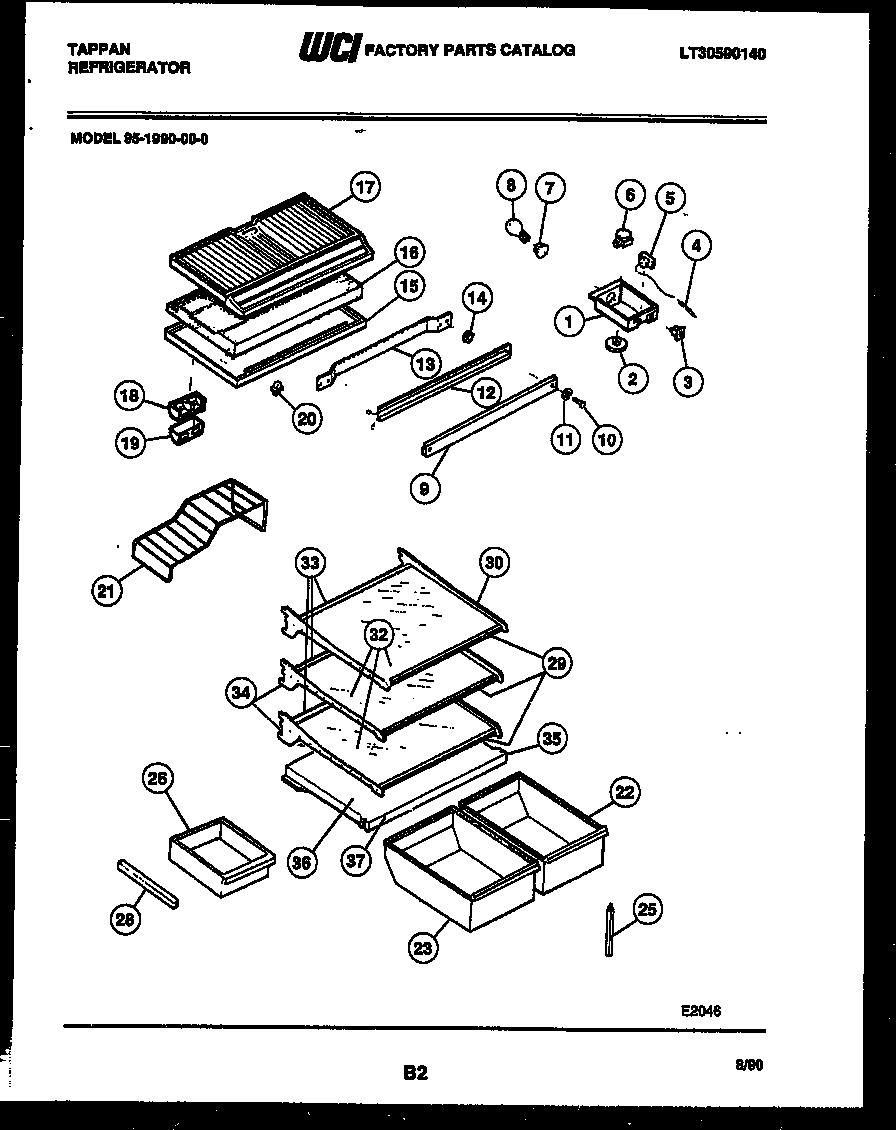

95-1990-00-00 04 – SHELVES AND SUPPORTS

95-1990-00-00 04 – SHELVES AND SUPPORTS

Written by

in

95-1990-00-00 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1CONTROL BOX
1B5304455650 Frigidaire Refrigerator Screw
1ALABEL-CONTROL BOX
2WCI 3001335
3SWITCH-ENERGY SAVER, SLIDE TYPE
4TUBE
5WCI 5303200810
5AWCI 5303001260
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A5304455649 Frigidaire Refrigerator Screw
7SOCKET-LIGHT/LAMP
8316538904 Frigidaire Oven Lamp Light
9WCI 5303200367
9WCI 5303200366
9WCI 5303200370
9WCI 5303200368
9WCI 5303200369
10WCI 5308012258
11WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
12WCI 5303210351
13WCI 5308010008
14SPACER-MULLION MTG, STEEL
15TOP PANEL-REFR, W/SNAP BUSHING
15AWCI 5303001380
16DIVIDER, STYROFOAM
16AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
17WCI 5303211427
18DEFLECTOR-AIR
19COVER – AIR DEFLECTOR
205309918806 Frigidaire Refrigerator Light Switch Door
21SHELF-FREEZER STEP
22PAN-CRISPER, RH
23PAN-CRISPER, LH
25SUPPORT-CRISPER CVR, ADJUSTABLE
26WCI 5303015407
28HANGER-PAN LH
28BWCI 08014528
28AHANGER-PAN RH (NON-ILLUSTRATED)
29WCI 5303210774
30WCI 5303210990
32WCI 5303211731
33WCI 5303211732
34FRAME-FULL SHELF
35COVER – CRISPER
36WCI 5303211730
36AGASKET-CRISPER COVER (NON-ILLUSTRATED)
37WCI 3205547
