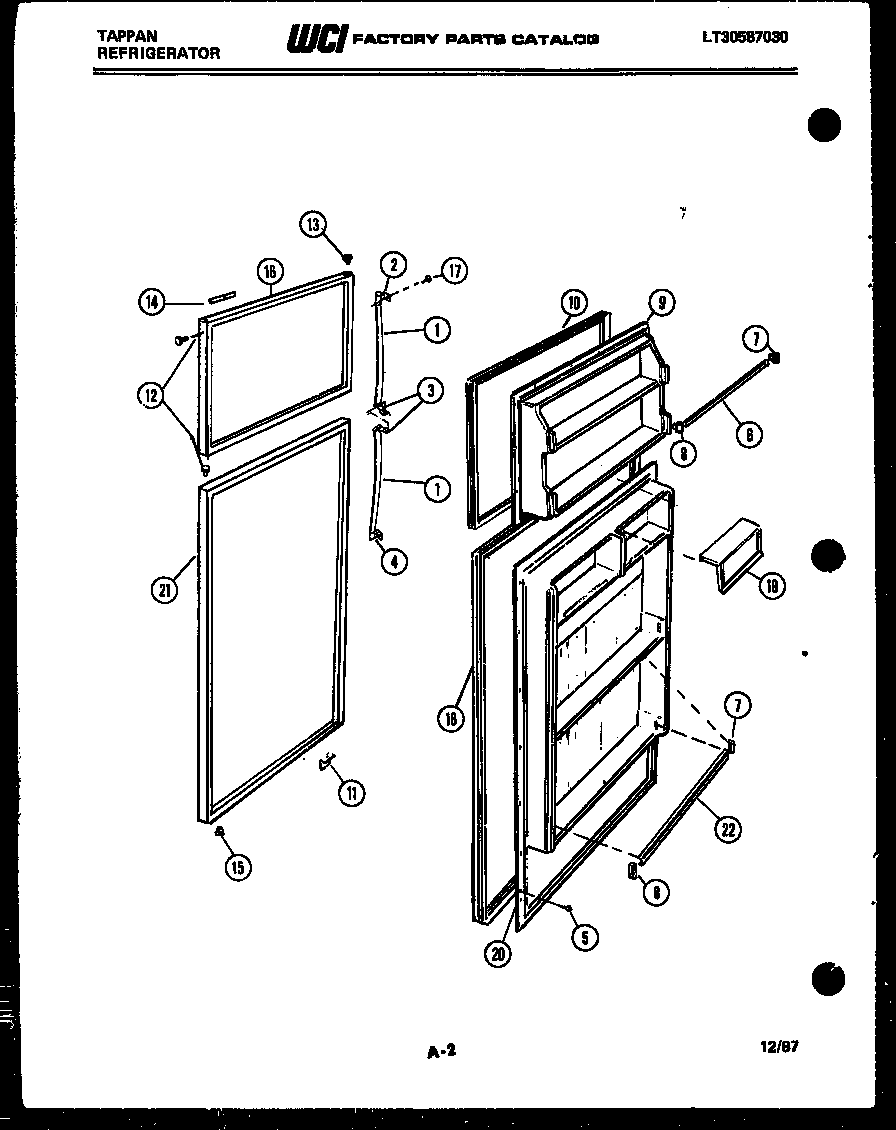

95-1997-00-01 02 – DOOR PARTS

95-1997-00-01 02 – DOOR PARTS

Written by

in

95-1997-00-01 02 – DOOR PARTS

Products

PositionProduct
1GRIP-HANDLE (2)
2WCI 3001297
3WCI 3001296
4WCI 3001295
55304455651 Frigidaire Refrigerator Screw
6RACK-DOOR (2)
7SUPPORT DOOR RACK RH (4)
8SUPPORT DOOR RACK LH (4)
9PANEL-INNER DOOR, FRZR
10GASKET-FREEZER
11STOP-DOOR (2)
12WCI 3001653
12240494001 Frigidaire Refrigerator Plug Button
12PLUG BUTTON-AVOCADO
12PLUG BUTTON-COFFEE
12BUTTON, PLUG HNDL. HOLE (6) ALMOND
13PLUG BUTTON-AVOCADO
13PLUG BUTTON-WHITE
13BUTTON, PLUG HNG. HOLE (2) ALMOND
13WCI 3001656
13PLUG BUTTON-COFFEE
14WCI 3001312
15WCI 3001021
16WCI 3001730
16PANEL O.D.-WEAT
16WCI 3001732
16WCI 3001487
16PNL O.D. ALMD
17SCREW HANDLE (8)
18GASKET REFRIGERATOR DOOR
19DOOR-COMPARTMENT (2)
20PANEL-INNER DOOR
21WCI 3001727
21PANEL O.D.-WEAT
21WCI 3001419
21PNL O.D. ALMD
21WCI 3001729
22WCI 3001418
