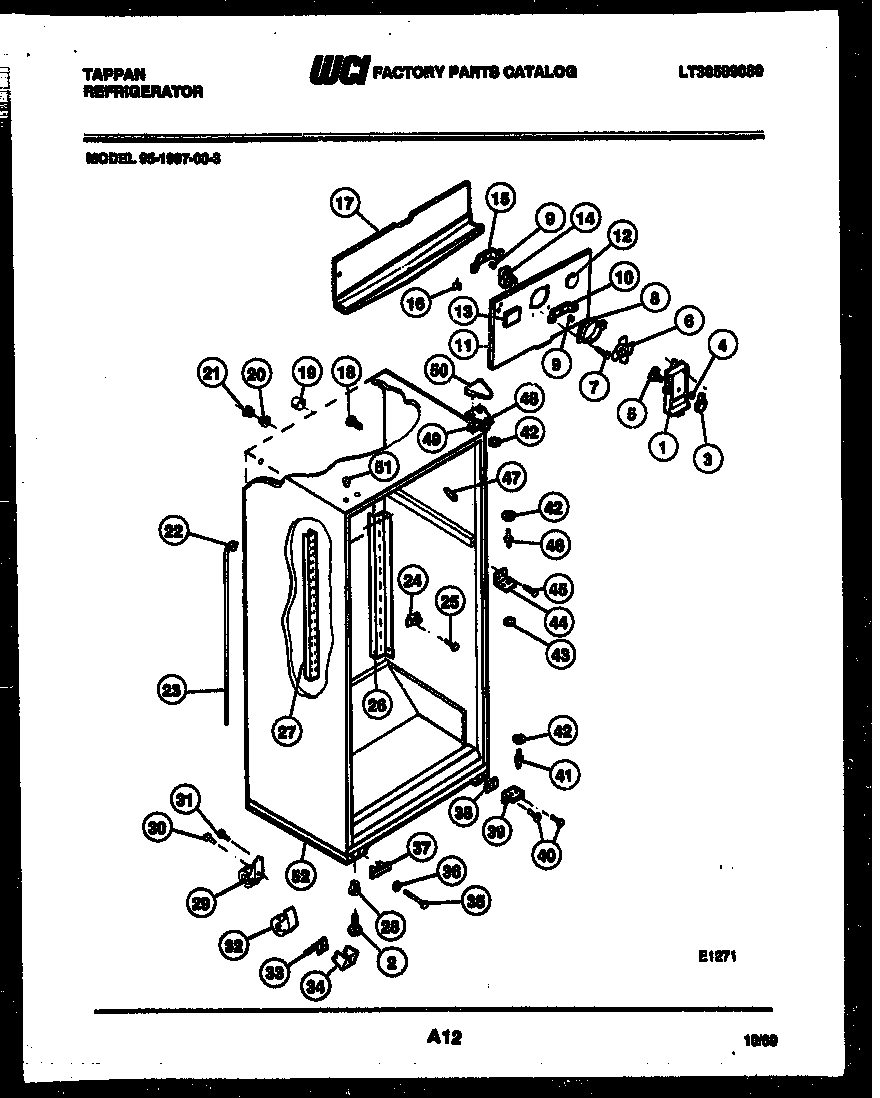

95-1997-00-03 03 – CABINET PARTS

Products

Position	Product
*33079	WCI 08016571
1	WCI 3001496
2	WCI 3001301
3	WCI 3001452
4	WCI 3001028
5	WCI 3001331
6	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	WCI 3001217
9	G187559 Frigidaire Refrigerator Bushing
10	WCI 3205118
11B	WCI 08000126
11	COVER-EVAPORATOR COIL
11A	5304455650 Frigidaire Refrigerator Screw
12	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
13	WCI 3001328
14	5300158289 Frigidaire Evaporator Fan Motor
15	WCI 3205119
16A	5304455651 Frigidaire Refrigerator Screw
16	BRACKET-CONNECTOR
17	DRAIN TROUGH
18	SUPPORT COIL COVER
19	WCI 3001198
20	WCI 3001286
21	WCI 3001287
22	RING-SEAL
23	WCI 3001458
24	SPOUT-DRAIN TUBE
25	PIN-PUSH
26	CHANNEL-RS & LS
26A	5304455852 Frigidaire Refrigerator Screw
27A	WCI 08016568
27	CHANNEL-CENTER (NON-ILLUSTRATED)
28	WCI 3001412
29	ROLLER-REAR (2)
30	BOLT 1/4-28 (2)
32	ROLLER-FRONT (2)
33	SPRING-ROLLER ADJ (2)
34	SUPPORT-ROLLER (2)
35	SCREW-ROLLER ADJUSTMENT
36	WASHER-NYLON (2)
37	WCI 3001478
38	SHIM-BOTTOM HINGE
39	HINGE-BRACKET-BOTTOM
40	241710601 Frigidaire Refrigerator Screw
41	5303001321 Frigidaire Refrigerator Lower Hinge Pin
42	WCI 3001299
43	WCI 3001038
44	HINGE BRACKET CENTER
45	SCREW, HINGE (4) NO. 10-24 X 7/8
46	PIN-CENTER HINGE
47	WCI 3202336
48	WCI 3001298
48B	TAPPING PLATE (2)
49	SHIM-TOP HINGE
50	COVER, HINGE-WHITE
51	PLUG HINGE-WHITE
52	WCI 08010092
