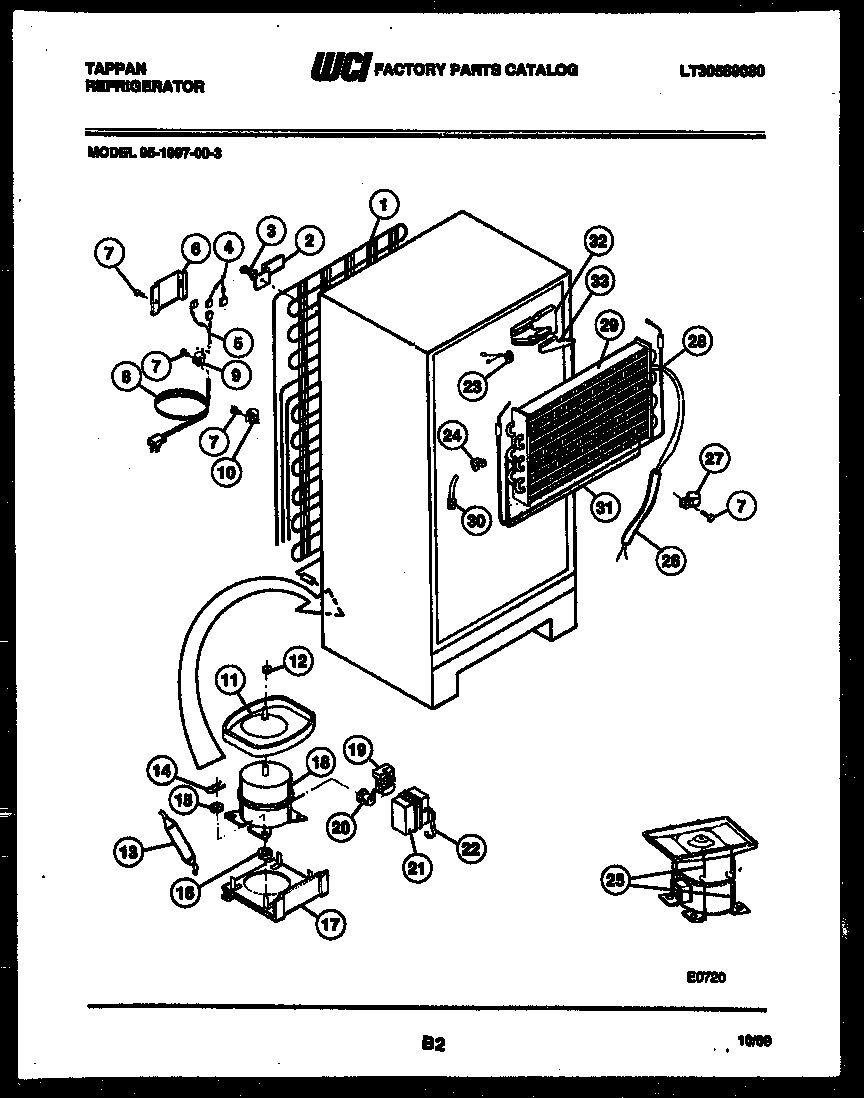

95-1997-00-03 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

95-1997-00-03 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

95-1997-00-03 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*33088WCI 09960001
1WCI 3001497
2BWCI 08009617
2WCI 3001195
2A5303017691 Frigidaire Refrigerator Spacer-Tube
35308000039 Frigidaire Refrigerator Screw
4HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
5HARNESS-COMPRESSOR
6WCI 3001197
75304455651 Frigidaire Refrigerator Screw
8WCI 3001200
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
11PAN-DEFROST
11A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
12WCI 3001348
135303305677 Frigidaire Replacement Filter Dryer Filters
14CLIP-COMPRESSOR MOUNTING (4)
15WASHER-COMPRESSOR MOUNTING (4)
16218513300 Frigidaire Refrigerator Compressor Mount Grommet
17PLATE-COMPR MTG
18COMPRESSOR-SERVICE
19216594300 Frigidaire Refrigerator Starter
225303006412 Frigidaire Refrigerator Cover Mounting Strap
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24BLOCK-EVAPORATOR LH
25PAN RETAINER KIT-SERVICE
26WCI 08000728
27240396801 Frigidaire Refrigerator Tube Clamp
285317842502 Frigidaire Defrost Heater
29WCI 08000062
305308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
31INSULATOR-EVAP
32BLOCK-EVAPORATOR RH
33PLUG-EVAPORATOR INSULATION RH
