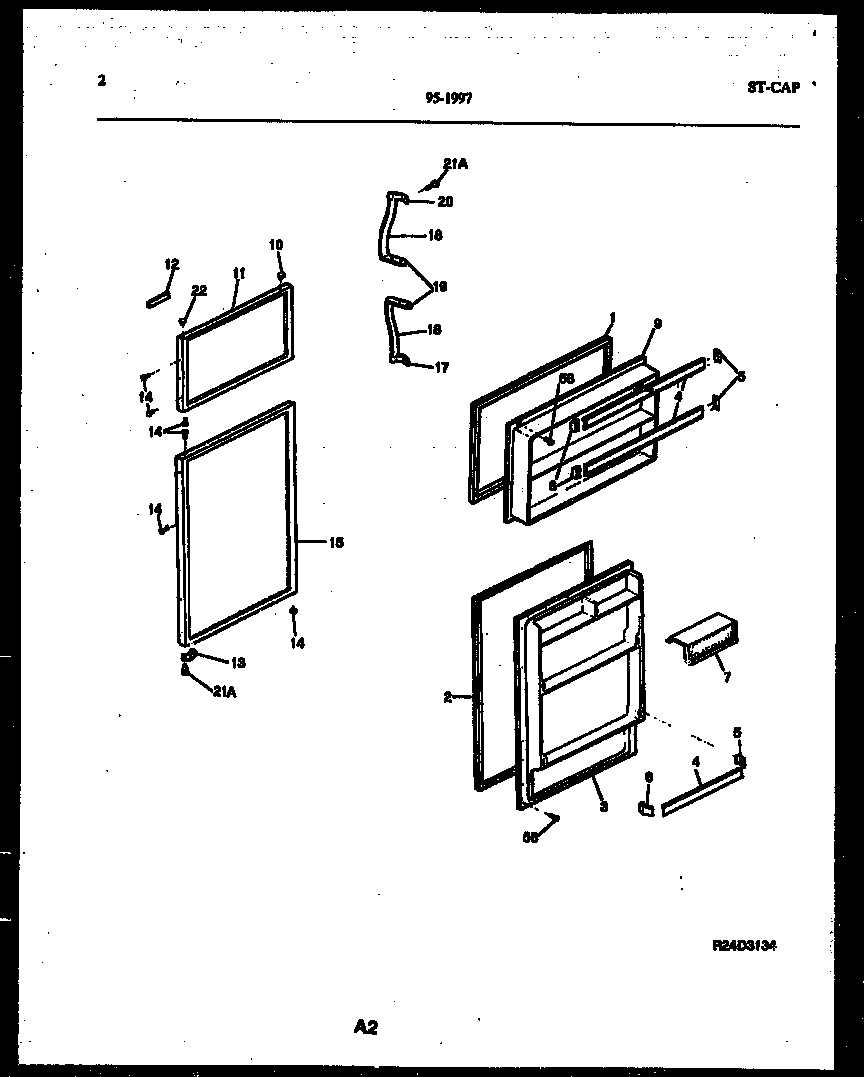

95-1997-00-04 02 – DOOR PARTS

95-1997-00-04 02 – DOOR PARTS

Written by

in

95-1997-00-04 02 – DOOR PARTS

Products

PositionProduct
*81451INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303001486
2GASKET-REFRIG DOOR
3PANEL-INNER DOOR
4WCI 3001409
5SUPPORT-DOOR RACK, RH
6SUPPORT-DOOR RACK, LH
7DOOR-DAIRY
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11PANEL-FRZR-OUTER-WHITE
12WCI 3001312
13WCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-OUTER-WHITE
17WCI 5303001297
18HANDLE-DOOR, BLACK VINYL, REFR/FRZR, (2)
19WCI 5303001296
20BOTTOM HANDLE END CAP
21AWCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
