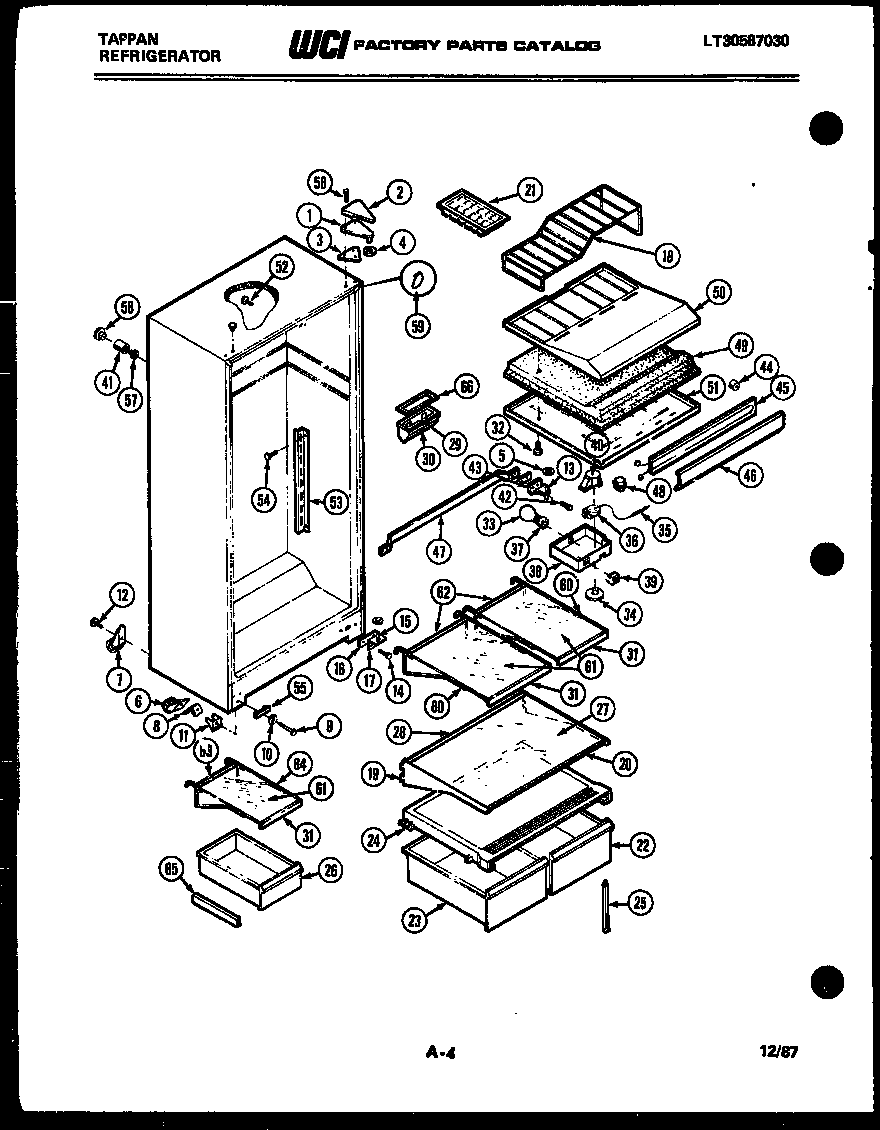

95-1997-45-01 03 – CABINET PARTS

95-1997-45-01 03 – CABINET PARTS

Written by

in

95-1997-45-01 03 – CABINET PARTS

Products

PositionProduct
1WCI 3001298
2COVER HINGE-COFFEE
3SHIM-TOP HINGE
4WCI 3001299
5WCI 3001038
6ROLLER-FRONT (2)
7ROLLER-REAR (2)
8SPRING-ROLLER ADJ (2)
9SCREW-ROLLER ADJUSTMENT
10WASHER-NYLON (2)
11SUPPORT-ROLLER (2)
12BOLT 1/4-28 (2)
13PIN-CENTER HINGE
14241710601 Frigidaire Refrigerator Screw
155303001321 Frigidaire Refrigerator Lower Hinge Pin
16SHIM-BOTTOM HINGE
17BRACKET-BOTTOM HINGE
18SHELF-FREEZER STEP
19WCI 3015406
20TRIM-REFR SHELF, SNAP-ON, FRONT, (3)
21215667501 Frigidaire Refrigerator Ice Tray Primary
22PAN-CRISPER, RIGHT SIDE
23PAN-CRISPER, LEFT SIDE
24WCI 3001493
25SUPPORT-PAN COVER
26MEAT PAN
27WCI 3001433
29WCI 3001378
30WCI 3001546
31WCI 3015408
32SCREW MOUNTING (3) (NON-ILLUSTRATED)
33316538904 Frigidaire Oven Lamp Light
34A5304455649 Frigidaire Refrigerator Screw
34BSCREW-MOUNTING (NON-ILLUSTRATED)
34WCI 3001335
35TUBE
36CONTROL, COLD
37WCI 3001267
38WCI 3001339
38CONTROL BOX
39WCI 3001670
40215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
41WCI 3001198
42SCREW, HINGE (4) NO. 10-24 X 7/8
43HINGE BRACKET CENTER
44SPACER-MULLION (2)
45WCI 3001467
46WCI 3007118
47STRAP–MULLION MOUNTING
485309918806 Frigidaire Refrigerator Light Switch Door
48AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
49DIVIDER-STYROFOAM
50BOTTOM PANEL-FREEZER
51WCI 3001506
52SUPPORT COIL COVER
53ACHANNEL-CENTER (NON-ILLUSTRATED)
53CHANNEL-RS & LS
545304455852 Frigidaire Refrigerator Screw
55WCI 3001478
57WCI 3001286
58WCI 3001287
59CORNER TRIM-COFFEE
60WCI 3015410
61WCI 3015411
62TRIM, REAR (2)
63WCI 3001427
64WCI 3015290
65AHANGER-PAN RIGHT SIDE (NON-ILLUSTRATED)
65HANGER-PAN LEFT SIDE
65CWCI 3001412
65BWCI 3001301
665303001449 Frigidaire Refrigerator Seal
