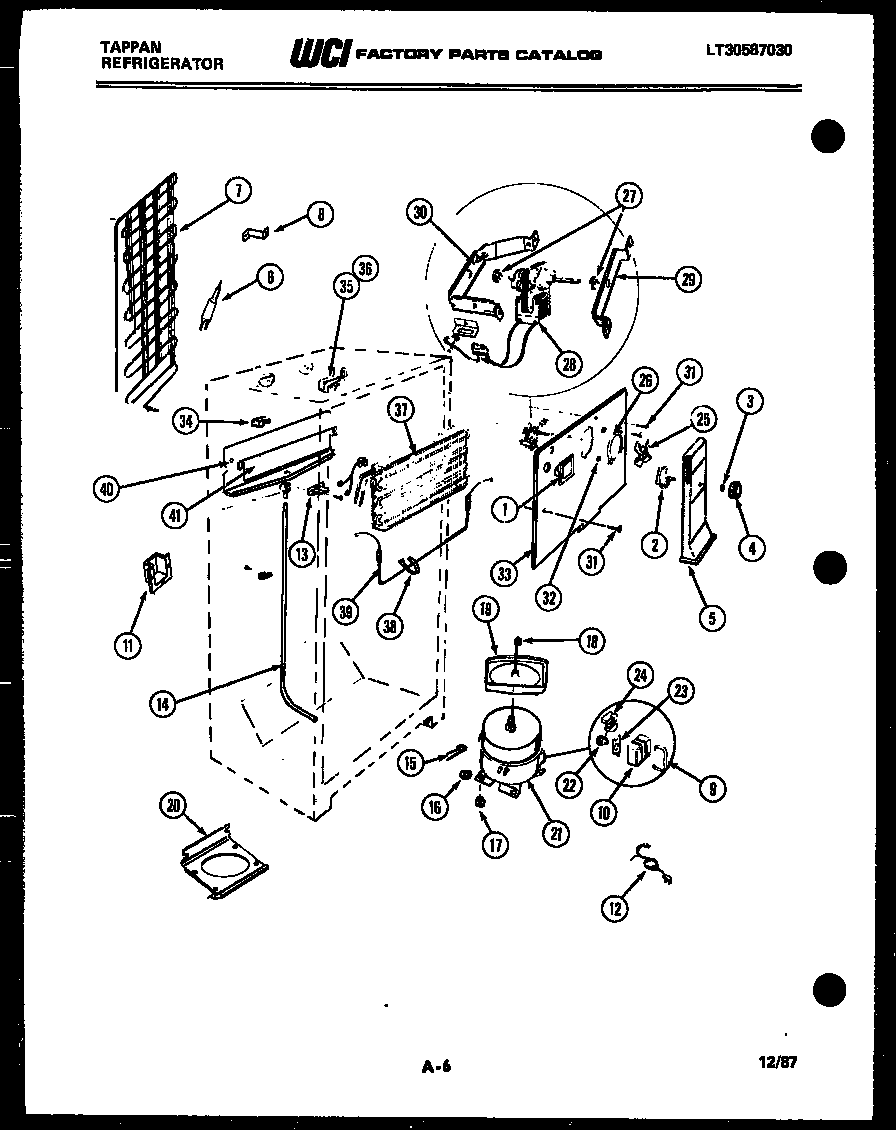

95-1997-45-01 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 3001328
2WCI 3001331
3WCI 3001028
4WCI 3001452
5WCI 3001496
65303305677 Frigidaire Replacement Filter Dryer Filters
7WCI 3001497
8WCI 3001195
95303006412 Frigidaire Refrigerator Cover Mounting Strap
11WCI 3001197
12WCI 3001200
13SPOUT-DRAIN TUBE
14WCI 3001458
15CLIP-COMPRESSOR MOUNTING (4)
16WASHER-COMPRESSOR MOUNTING (4)
17218513300 Frigidaire Refrigerator Compressor Mount Grommet
18WCI 3001348
19WCI 3001397
20PLATE-COMPR MTG
21WCI 3916006
22WCI 3001501
23WCI 3001394
24WCI 3001502
255308000010 Frigidaire Refrigerator Evaporator Fan Blade
26WCI 3001217
27G187559 Frigidaire Refrigerator Bushing
285300158289 Frigidaire Evaporator Fan Motor
29WCI 3001226
30WCI 3001227
315304455651 Frigidaire Refrigerator Screw
32WCI 3001220
33COVER-EVAPORATOR COIL
34BLOCK-EVAPORATOR LH
35BLOCK-EVAPORATOR RH
36PIN-PUSH
37WCI 3001464
385308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
38AHEAT EXCHANGER
395317842502 Frigidaire Defrost Heater
40DRAIN TROUGH
41INSULATOR
