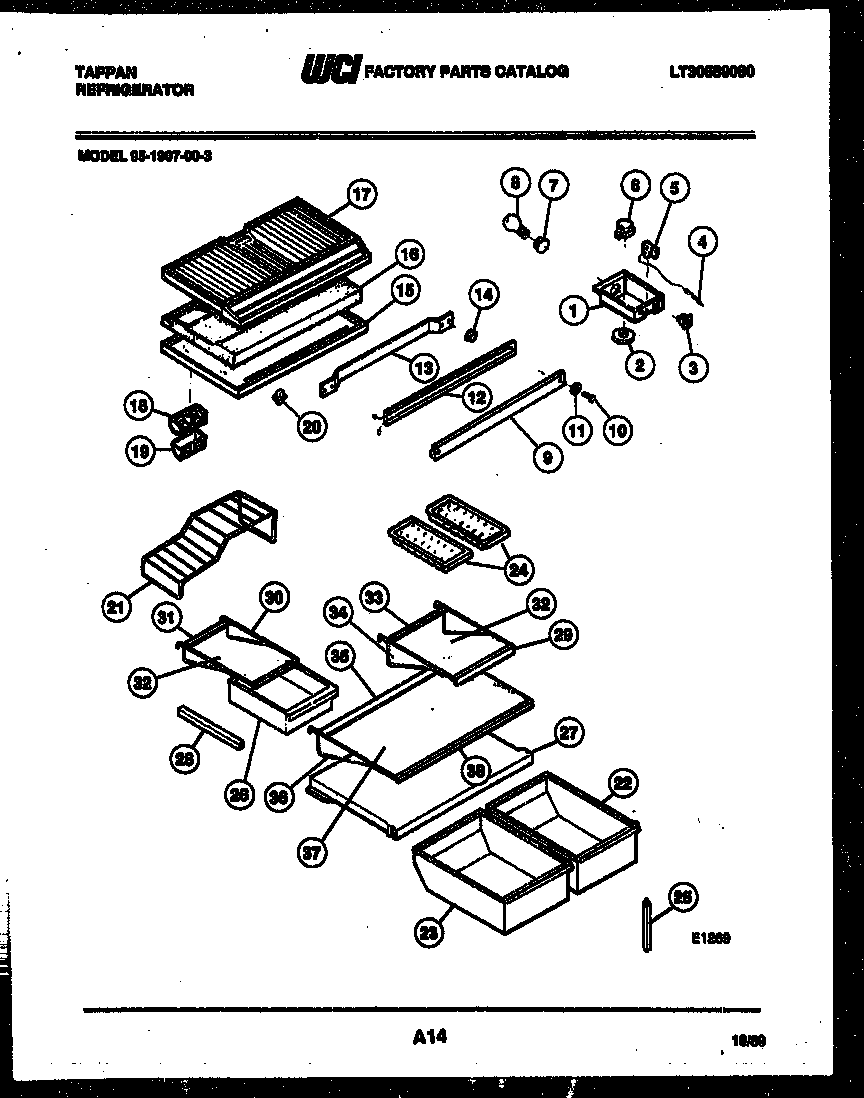

95-1997-45-03 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1CONTROL BOX
1AWCI 3001339
1B5304455650 Frigidaire Refrigerator Screw
2WCI 3001335
3WCI 3001670
4TUBE
5WCI 3200810
5ASCREW-MOUNTING (NON-ILLUSTRATED)
6A5304455649 Frigidaire Refrigerator Screw
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
7WCI 3001267
8316538904 Frigidaire Oven Lamp Light
9WCI 3200369
10SCREW, HINGE (4) NO. 10-24 X 7/8
11WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
12WCI 3018916
13STRAP–MULLION MOUNTING
14SPACER (NON-ILLUSTRATED)
15ASCREW MOUNTING (3) (NON-ILLUSTRATED)
15TOP-REFRIGERATOR
16DIVIDER-STYROFOAM
16AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
17BOTTOM PANEL-FREEZER
18WCI 3001378
19WCI 3001546
205309918806 Frigidaire Refrigerator Light Switch Door
21SHELF-FREEZER STEP
22PAN-CRISPER, RIGHT SIDE
23PAN-CRISPER, LEFT SIDE
24215667501 Frigidaire Refrigerator Ice Tray Primary
25SUPPORT-ADJ CRISPER COVER
26MEAT PAN
27WCI 3001493
28BWCI 08014528
28HANGER-PAN LEFT SIDE
28AHANGER-PAN RIGHT SIDE (NON-ILLUSTRATED)
29WCI 3015408
30WCI 3015290
31WCI 3201126
32WCI 3015411
33WCI 3201127
34WCI 3015410
35WCI 3201129
36WCI 3015406
37WCI 3001433
38TRIM-REFR SHELF, SNAP-ON, FRONT, (3)
