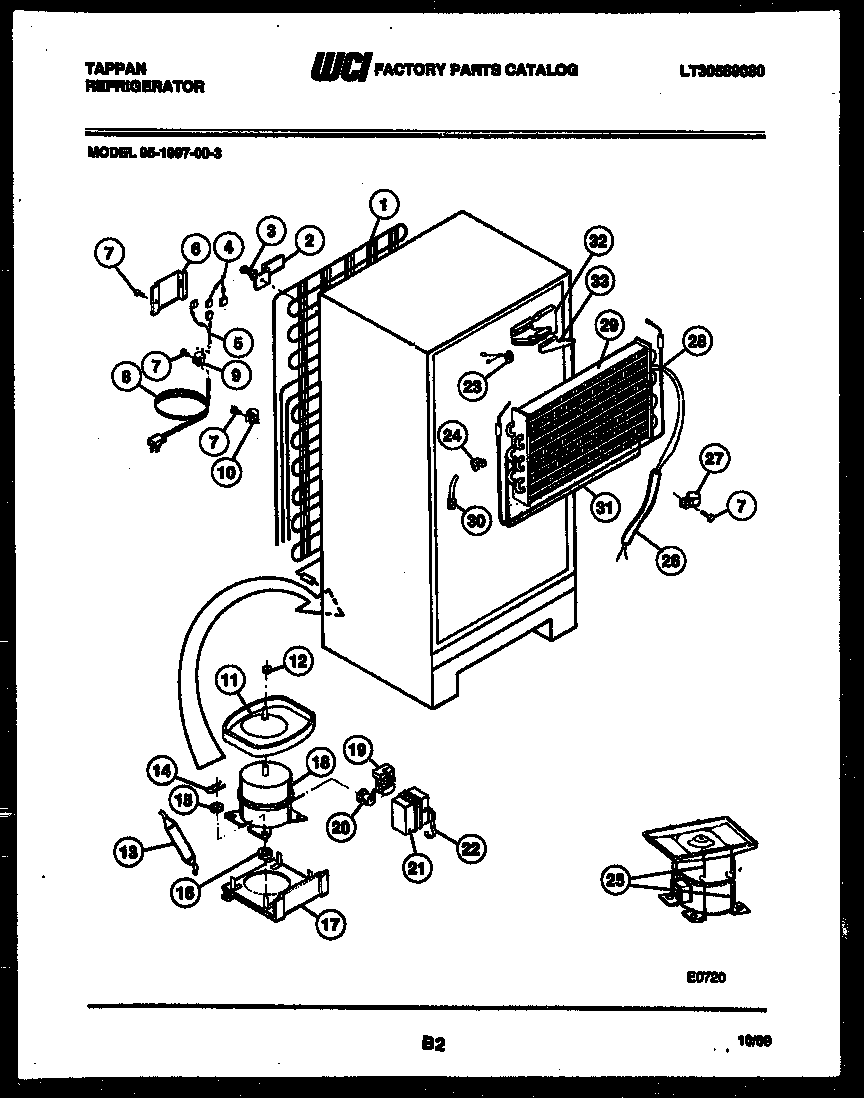

95-1997-45-03 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*33088	WCI 09960001
1	WCI 3001497
2B	WCI 08009617
2	WCI 3001195
2A	5303017691 Frigidaire Refrigerator Spacer-Tube
3	5308000039 Frigidaire Refrigerator Screw
4	HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
5	HARNESS-COMPRESSOR
6	WCI 3001197
7	5304455651 Frigidaire Refrigerator Screw
8	WCI 3001200
9	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
11	PAN-DEFROST
11A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
12	WCI 3001348
13	5303305677 Frigidaire Replacement Filter Dryer Filters
14	CLIP-COMPRESSOR MOUNTING (4)
15	WASHER-COMPRESSOR MOUNTING (4)
16	218513300 Frigidaire Refrigerator Compressor Mount Grommet
17	PLATE-COMPR MTG
18	COMPRESSOR-SERVICE
19	216594300 Frigidaire Refrigerator Starter
22	5303006412 Frigidaire Refrigerator Cover Mounting Strap
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	BLOCK-EVAPORATOR LH
25	PAN RETAINER KIT-SERVICE
26	WCI 08000728
27	240396801 Frigidaire Refrigerator Tube Clamp
28	5317842502 Frigidaire Defrost Heater
29	WCI 08000062
30	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
31	INSULATOR-EVAP
32	BLOCK-EVAPORATOR RH
33	PLUG-EVAPORATOR INSULATION RH
