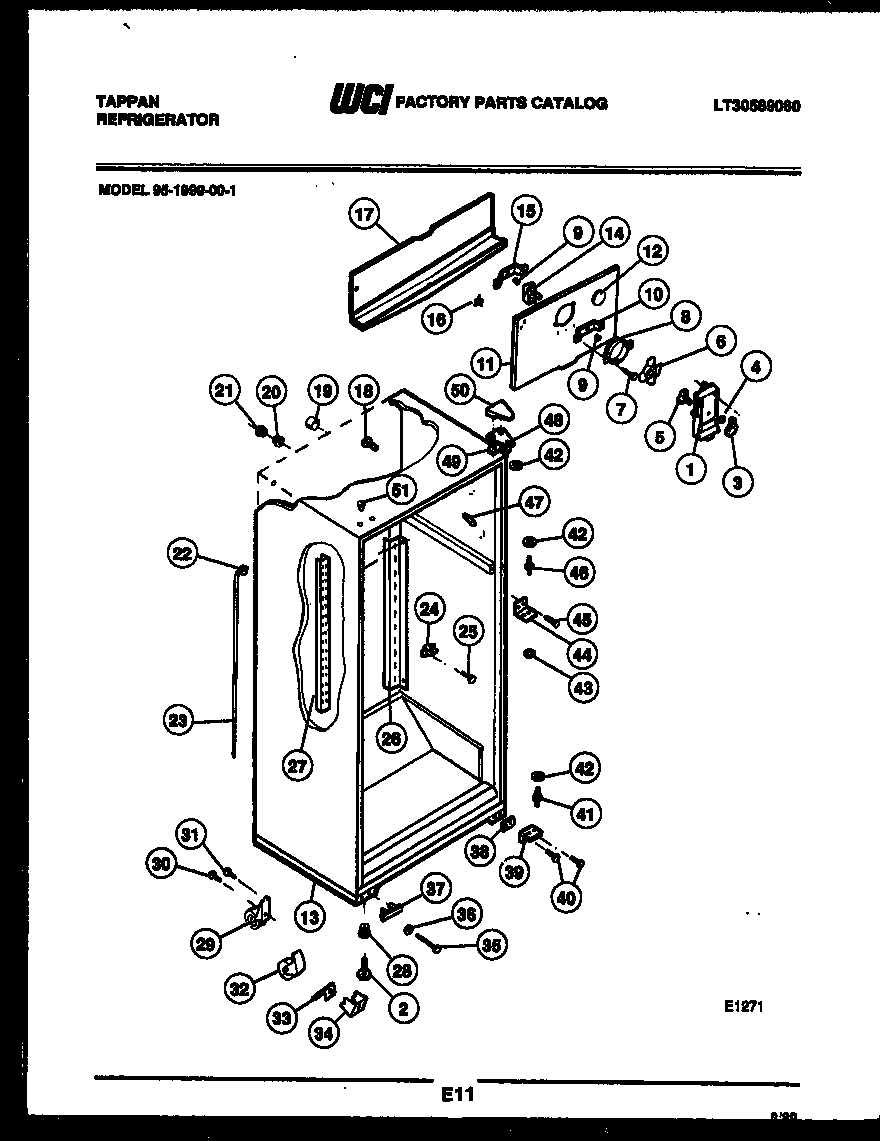

95-1999-45-01 03 – CABINET PARTS

Products

Position	Product
*28184	WCI 08016571
1	WCI 3001496
2	WCI 3001301
3	WCI 3001452
4	WCI 3001028
5	WCI 3001331
6	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	WCI 3001217
9	G187559 Frigidaire Refrigerator Bushing
10	WCI 3001226
11B	WCI 0800126
11	COVER-EVAPORATOR COIL
11A	5304455650 Frigidaire Refrigerator Screw
12	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
13	WCI 08010092
14	5300158289 Frigidaire Evaporator Fan Motor
15	WCI 3001227
16A	5304455651 Frigidaire Refrigerator Screw
16	BRACKET-CONNECTOR
17	DRAIN TROUGH
18	SUPPORT COIL COVER
19	WCI 3001198
20	WCI 3001286
21	WCI 3001287
22	RING-SEAL
23	WCI 3001458
24	SPOUT-DRAIN TUBE
25	PIN-PUSH
26A	5304455852 Frigidaire Refrigerator Screw
26	CHANNEL-RS & LS
27A	CHANNEL-CENTER (NON-ILLUSTRATED)
27A	WCI 08016568
28	WCI 3001412
29	ROLLER-REAR (2)
30	BOLT 1/4-28 (2)
32	ROLLER-FRONT (2)
33	SPRING-ROLLER ADJ (2)
34	SUPPORT-ROLLER (2)
35	SCREW-ROLLER ADJUSTMENT
36	WASHER-NYLON (2)
37	WCI 3001478
38	SHIM-BOTTOM HINGE
39	HINGE-BRACKET-BOTTOM
40	241710601 Frigidaire Refrigerator Screw
40A	WCI 3007090
41	5303001321 Frigidaire Refrigerator Lower Hinge Pin
42	WCI 08000007
43	WCI 3001038
44	HINGE BRACKET CENTER
45	SCREW, HINGE (4) NO. 10-24 X 7/8
46	PIN-CENTER HINGE
47	WCI 3202339
48	WCI 3001298
48B	TAPPING PLATE (2)
49	SHIM-TOP HINGE
50	COVER HINGE-COFFEE
51	PLUG HINGE-COFFEE
