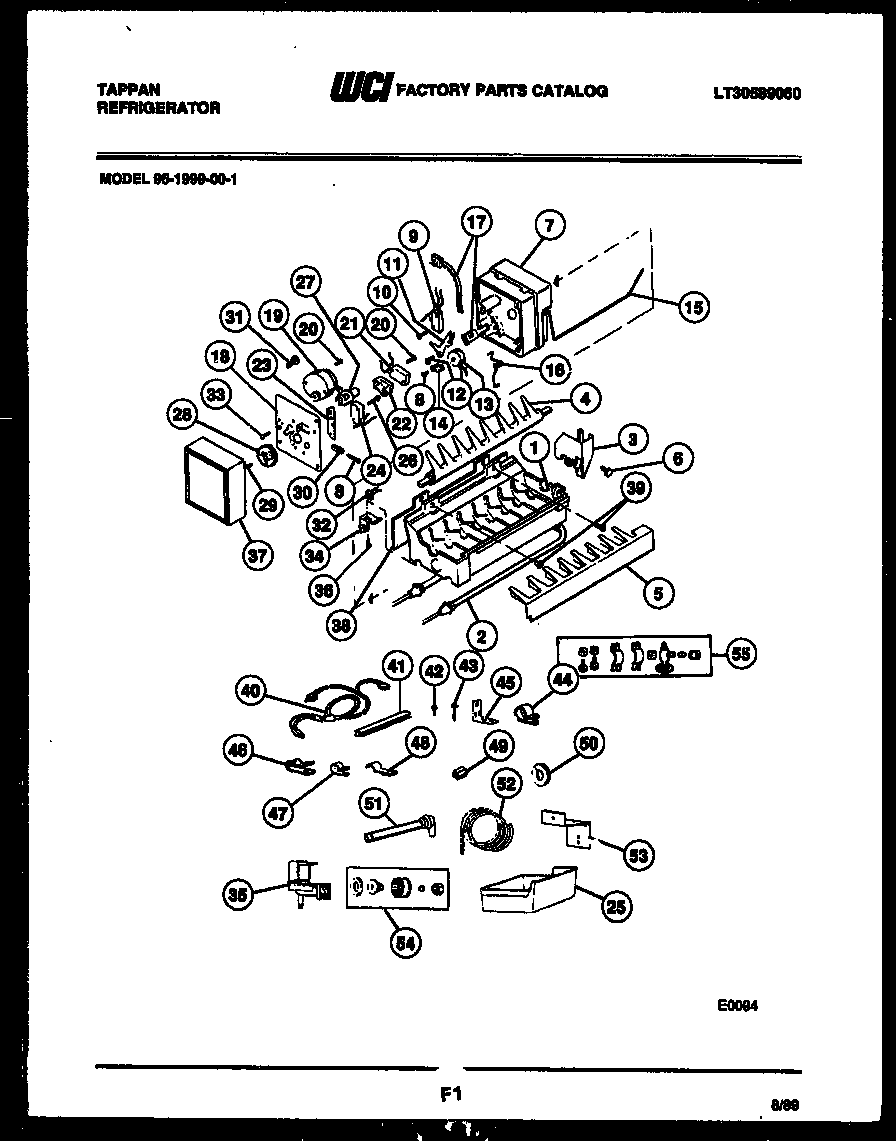

95-1999-45-01 05 – ICE MAKER AND INSTALLATION PARTS

Products

Position	Product
*28193	WCI 3015102
*28193	WCI G154156
1	MOLD AND HEATER ASSEMBLY (INCLUDES ILLUSTRATION 29)
2	WCI G137756
3	WCI G181117
4	WCI G159911
5	STRIPPER-ICE
7	WCI G137748
8	SCREW 8, 32 X 1
10	WCI G137745
11	5304456675 Frigidaire Refrigerator Lever Arm
12	SCREW, SHOULDER
13	WCI G159907
14	WCI G137742
15	ARM, SHUT OFF
16	WCI G137753
17	WIRE ASSEMBLY
18	WCI G186572
19	WCI G137735
20	SCREW 4, 40 X 1
22	SPACER, HOLDING SWITCH
23	WCI G159905
24	SWITCH-SPST
25	5303212918 Frigidaire Refrigerator Cont
26	SCREW 4, 40 X 3/4
27	WCI G137738
28	5304469403 Frigidaire Gear
29	SCREW
30	WCI G159909
31	WCI G159898
32	WCI G159902
33	WCI M1090016
34	WCI G159906
35	WATER VALVE-SOLENOID
36	WCI M1090120
37	WCI G159908
37A	WCI G161199
38	SHIELD
39	WCI G164766
40	WCI G185266
41	5305877995 Frigidaire Refrigerator P-1 Sealing Strip
42	5304455651 Frigidaire Refrigerator Screw
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	240396801 Frigidaire Refrigerator Tube Clamp
46	5304455846 Frigidaire Refrigerator Clamp
47	5303001193 Frigidaire Refrigerator Clamp
48	CLIP, HARNESS LOCATION
49	NUT, INLET TO SOLENOID VALVE
50	5303001147 Frigidaire Refrigerator Plug-Harness Hole
51	215456100 Frigidaire Refrigerator Water Inlet Tube
52	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
53	BRACKET, VALVE TO REAR PANEL
53A	5304455852 Frigidaire Refrigerator Screw
53B	5308000039 Frigidaire Refrigerator Screw
54	WCI G159415
55	WCI G99428
