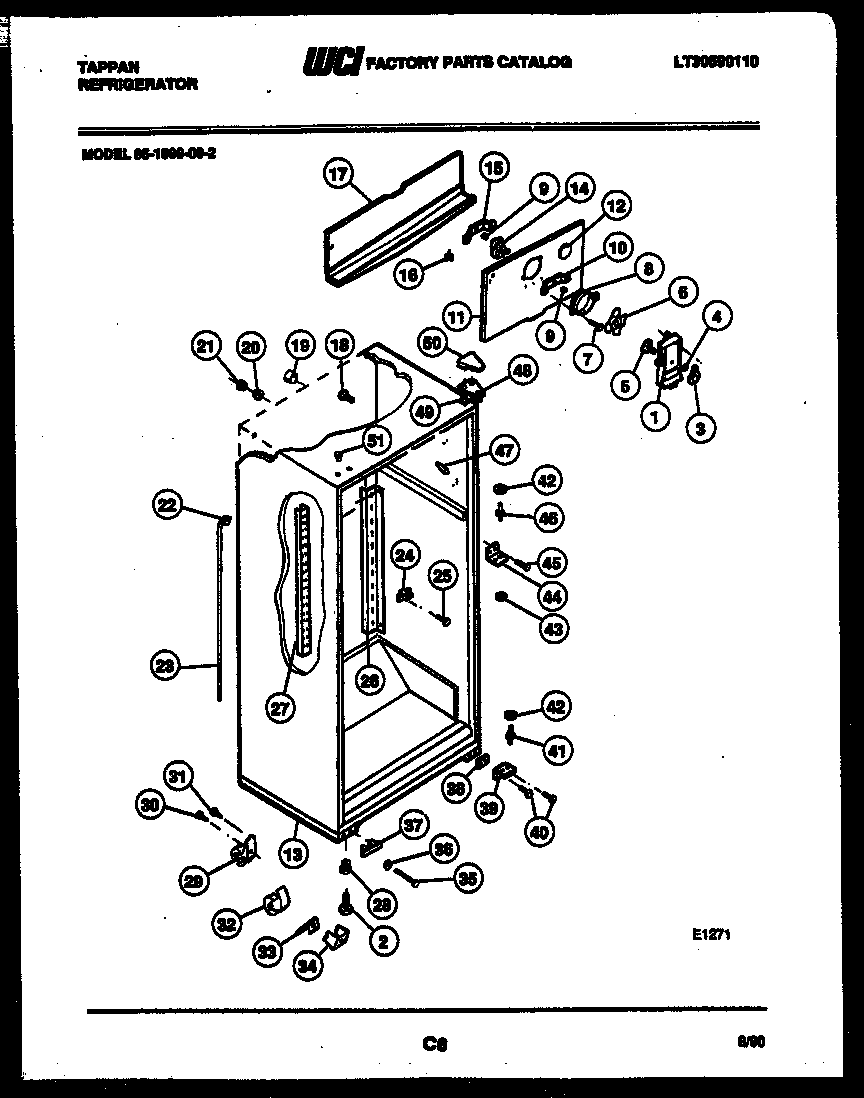

95-1999-57-02 03 – CABINET PARTS

Products

Position	Product
*38580	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 5303001496
2	SCREW-LEVELING (4)
3	WCI 3001452
4	Nut,push-on
5	DAMPER-FAN COVER
6	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	218843801 Frigidaire Refrigerator Screw
8	RING-FAN ORIFICE
9	G187559 Frigidaire Refrigerator Bushing
10	WCI 5303001226
11	WCI 5308009771
11A	5304455650 Frigidaire Refrigerator Screw
11B	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
12	5303208309 Frigidaire Refrigerator Plug Hole
13	CABINET BASE
14	5300158289 Frigidaire Evaporator Fan Motor
15	WCI 5303001227
16	WCI 5308000107
17	WCI 5303001470
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	WCI 5303207354
23	WCI 5303210377
24	WCI 5308000056
25	WCI 5303001361
26A	5304455852 Frigidaire Refrigerator Screw
26	CHANNEL, RH & LH
27	WCI 5303015409
27A	WCI 5308016568
28	WCI 5308003584
29	WCI 5308009773
30	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
31	5304455651 Frigidaire Refrigerator Screw
32	WCI 5308009760
33	WCI 5308009790
34	SUPPORT, BASE (2)
35	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
36	WCI 5308011326
37	COVER-HOLE, LOWER HINGE
38	SHIM-LOWER HINGE
39	HINGE BRACKET – BOTTOM
40	241710601 Frigidaire Refrigerator Screw
41	5303001321 Frigidaire Refrigerator Lower Hinge Pin
42	WASHER, .34 X .62 X .05, NYLON
43	WCI 5308000186
44	BRACKET-CTR HINGE
45	WCI 5308012258
46	WCI 5308000184
47	CORNER
48B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
48	BRACKET-UPPER HINGE
49	SHIM – UPPER HINGE
50	COVER-HINGE-AVOCADO
51	BUTTON-HINGE-AVOCADO
