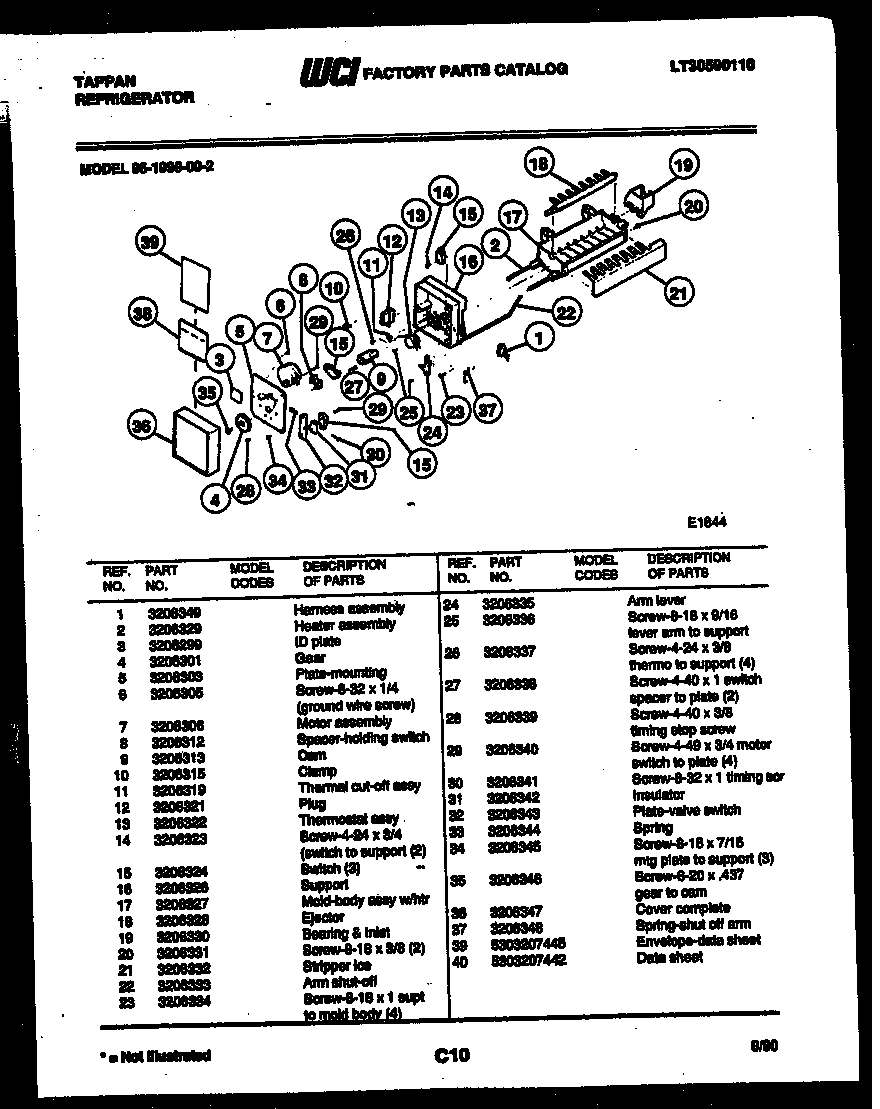

95-1999-57-02 05 – ICE MAKER PARTS

Products

Position	Product
1	HARNESS-WIRING, INTERNAL IM, WITH PLUG
3	Label,ID plate
4	5304469403 Frigidaire Gear
5	WCI 3206303
6	218359202 Frigidaire Refrigerator Screw
7	5303918277 Frigidaire Refrigerator Ice Maker Assembly
8	SPACER-HOLD SWITCH
9	WCI 3206313
10	WCI 3206315
11	3206319 Frigidaire Refrigerator Thermal Cut-Off Assembly P1
12	PLUG, ``ONLY``
13	Thermostat Assy,ice maker
14	SCREW,4-24 X 0.750 ,(6)
15	5304456667 Frigidaire Refrigerator Micro Switch
16	WCI 3206326
17	241798231 Frigidaire Refrigerator Ice Maker Assembly
18	EJECTOR-ICE
19	WCI 3206330
20	WCI 3206331
21	ICE STRIPPER
22	SHUT-OFF ARM
23	SCREW - SUP / MOLD BODY, 8-18 X 1, (4)
24	5304456675 Frigidaire Refrigerator Lever Arm
25	SCREW,8-18 X 0.562 ,LEVER ARM/SPRT
26	SCREW-THERMO/SPRT, 4-24 X 3/8, (4)
27	SCREW,4-40 X 1.000 ,HOLD SWITCH MTG ,
28	Screw-timing stop`4-40 x 0.375
29	SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4)
30	SCREW-TIMING ADJ,8-32 X 1.000
31	WCI 3206342
32	WCI 3206343
33	WCI 3206344
34	SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3)
35	SCREW - GEAR / CAM, 6-20 X 0.437
36	COVER-ICE MAKER
37	WCI 3206348
39	WCI 5303207445
40	WCI 5303207442
