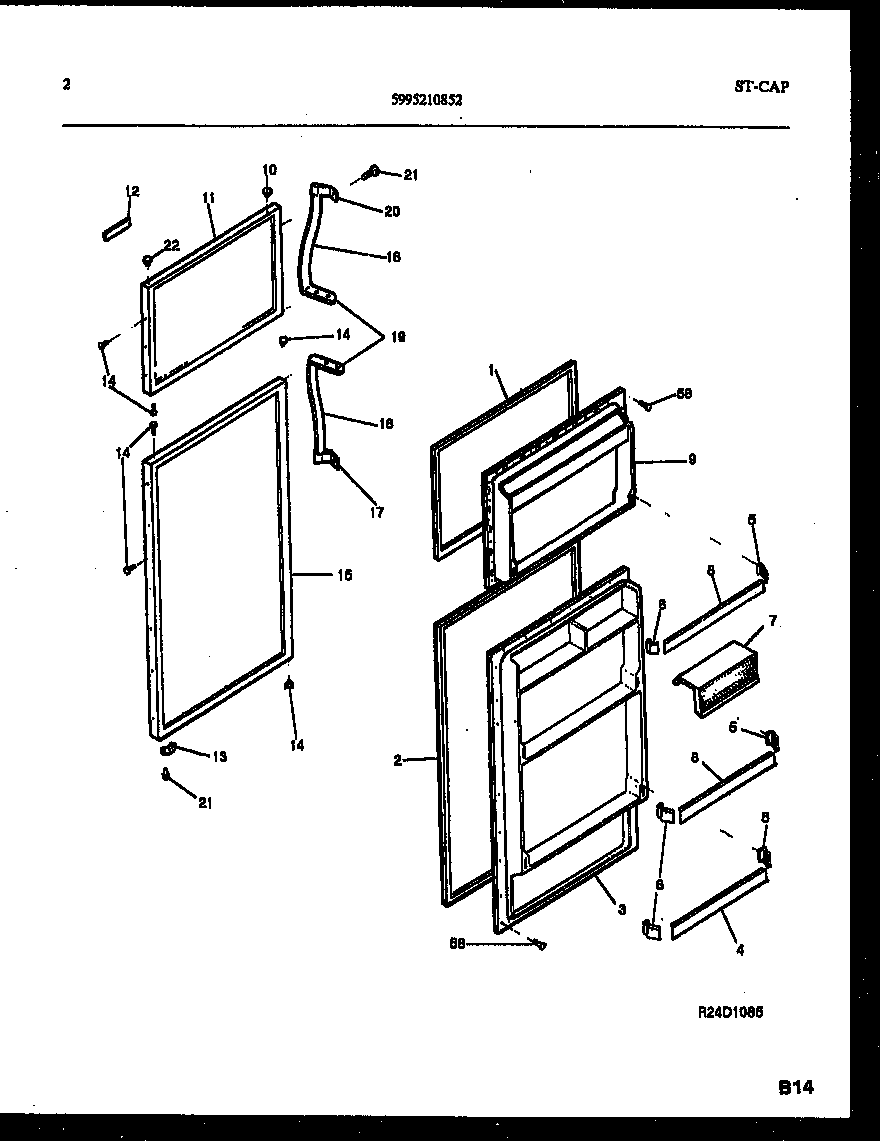

95-2181-23-00 02 – DOOR PARTS

95-2181-23-00 02 – DOOR PARTS

Written by

in

95-2181-23-00 02 – DOOR PARTS

Products

PositionProduct
*56458INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR
2GASKET-REFRIG DOOR
3PANEL-INNER
4WCI 5303001418
5SUPPORT-DOOR RACK, RH
6SUPPORT-DOOR RACK, LH
7DOOR-DAIRY
8WCI 3001409
9PANEL-INNER
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303916940
12WCI 3001312
12AWCI 3001024
13AWCI 5308000255
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5317869411
17WCI 5303001297
18HANDLE-DOOR, BLACK VINYL, REFR/FRZR, (2)
19WCI 5303001296
20BOTTOM HANDLE END CAP
21WCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
