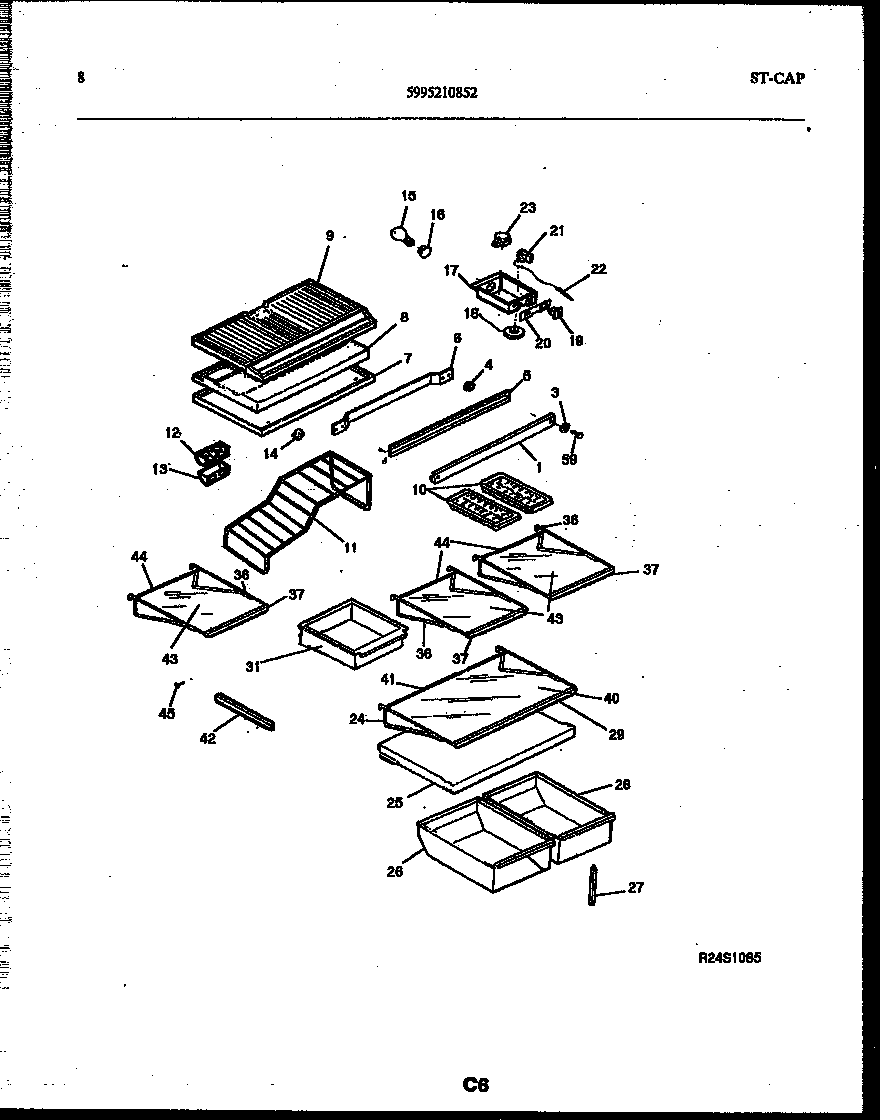

95-2181-23-00 05 – SHELVES AND SUPPORTS

95-2181-23-00 05 – SHELVES AND SUPPORTS

Written by

in

95-2181-23-00 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7AWCI 5303001380
7BBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP-REFRIGERATOR
8WCI 5308013674
8AHARNESS-DIVIDER (NON-ILLUSTRATED)
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER
12BEXTENSION, AIR DEFLECTOR, WITH INSULATION
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17A5304455650 Frigidaire Refrigerator Screw
17CONTROL BOX
18WCI 3001335
19SWITCH-ENERGY SAVER, SLIDE TYPE
20LABEL-CONTROL BOX
21AWCI 5303001260
21WCI 5308015762
22TUBE
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
