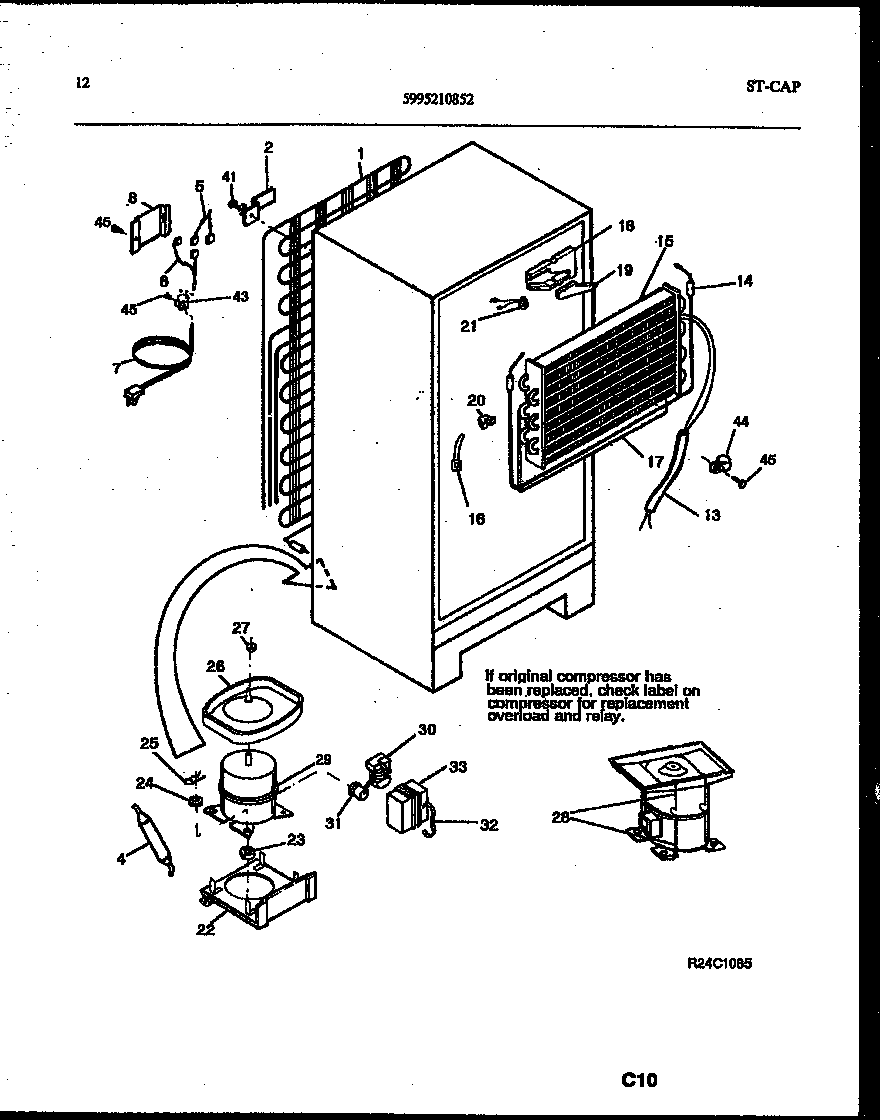

95-2181-23-00 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

95-2181-23-00 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

95-2181-23-00 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*56472HOT TUBE REPAIR KIT-SERVICE
1WCI 5300163133
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5HARNESS-DIVIDER (NON-ILLUSTRATED)
6WIRING HARNESS, COMPRESSOR,
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 5308000728
145317842502 Frigidaire Defrost Heater
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26PAN-DEFROST DRAIN, ORIG/SVCE COMPR
26A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
29COMPRESSOR W/ ELECTRICALS
29ACAPACITOR
30RELAY-TL
31WCI 5303272819
325303006412 Frigidaire Refrigerator Cover Mounting Strap
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
