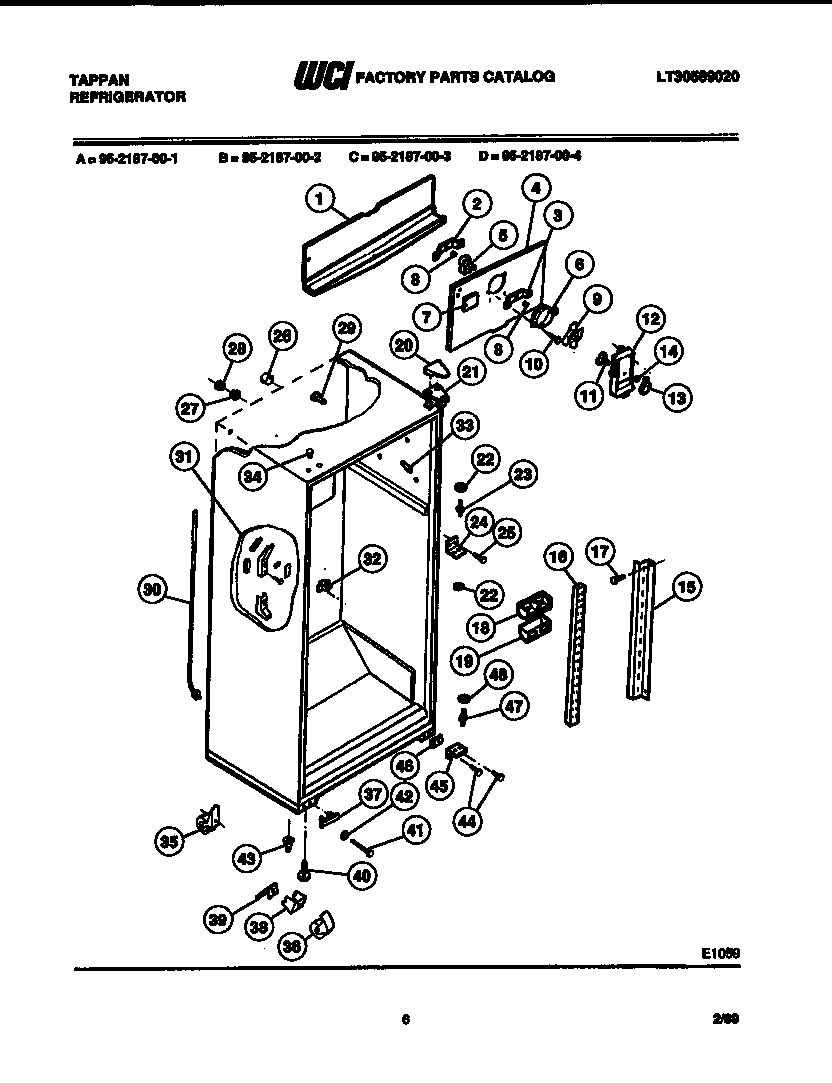

95-2187-00-03 04 – CABINET PARTS

Products

Position	Product
*44043	WCI 3007090
1	DRAIN TROUGH
2	WCI 3001227
3A	WCI 3001220
3	WCI 3001226
4	WCI 3001463
4A	NUT, ORIFICE (2)
5	5300158289 Frigidaire Evaporator Fan Motor
6	WCI 3001217
7	WCI 3001328
8	G187559 Frigidaire Refrigerator Bushing
9	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
10	5304455651 Frigidaire Refrigerator Screw
11	WCI 3001331
12	WCI 3001451
13	WCI 3001452
14	WCI 3001028
15	CHANNEL-RS & LS
16	CHANNEL-CENTER (NON-ILLUSTRATED)
17	5304455852 Frigidaire Refrigerator Screw
18	WCI 3001447
18A	5303001449 Frigidaire Refrigerator Seal
19	WCI 3001448
20	COVER, HINGE-WHITE
21A	SHIM-TOP HINGE
21B	WCI 3001299
21	WCI 3001298
23	PIN-CENTER HINGE
24	HINGE BRACKET CENTER
25	SCREW, HINGE (4) NO. 10-24 X 7/8
26	WCI 3001198
27	WCI 3001286
28	WCI 3001287
29	SUPPORT COIL COVER
30	WCI 3001458
31D	WCI 3001441
31B	WCI 3001445
31A	WCI 3001444
31	WCI 3001443
31E	WCI 3001442
31C	LABEL-MEAT KPR DUCT
32	SPOUT-DRAIN TUBE
33	WCI 3001480
34	PLUG HINGE-WHITE
35	ROLLER-REAR (2)
36	ROLLER-FRONT (2)
37	WCI 3001478
38	SUPPORT-ROLLER (2)
39	SPRING-ROLLER ADJ (2)
40	WCI 3001301
41	SCREW-ROLLER ADJUSTMENT
42	WASHER-NYLON (2)
43	WCI 3001412
44	241710601 Frigidaire Refrigerator Screw
45	HINGE BRACKET BOTTOM
46	SHIM-BOTTOM HINGE
47	5303001321 Frigidaire Refrigerator Lower Hinge Pin
48	WCI 3001038
