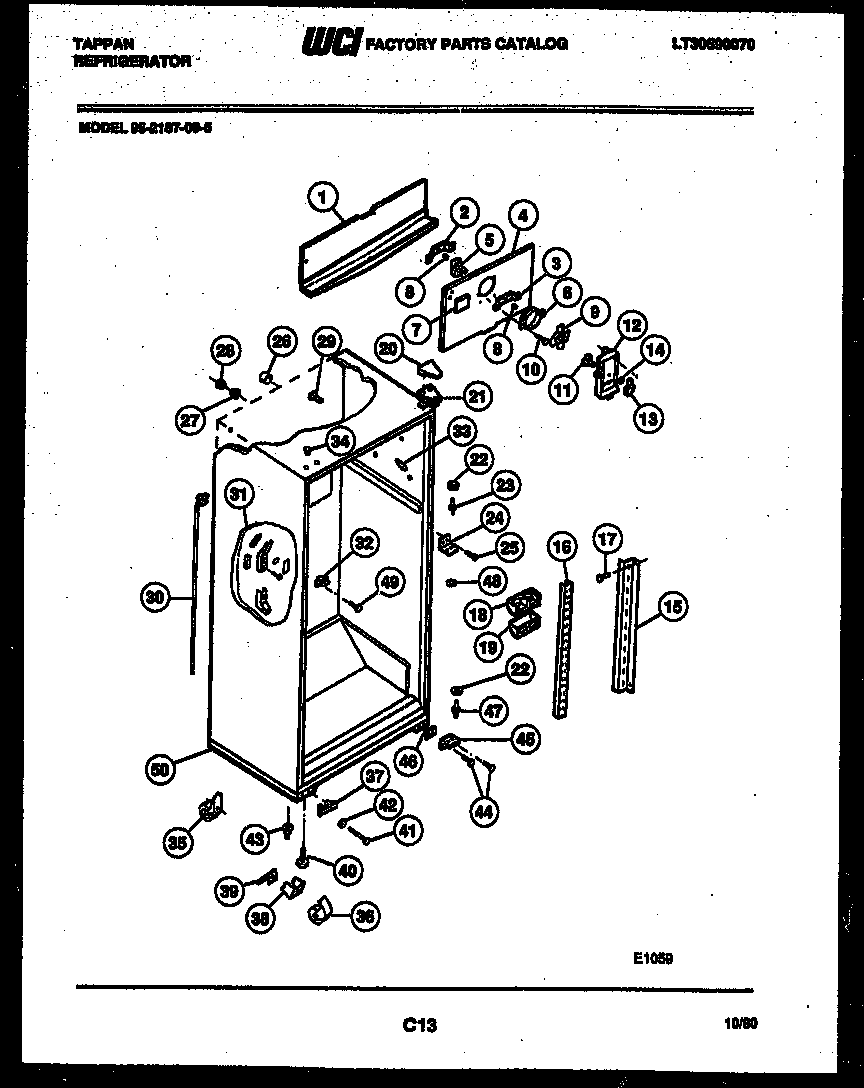

95-2187-00-05 04 – CABINET PARTS

95-2187-00-05 04 – CABINET PARTS

Written by

in

95-2187-00-05 04 – CABINET PARTS

Products

PositionProduct
1WCI 5303001470
2BRACKET-MOTOR MTG, REAR
3AWCI 5308000107
3WCI 5303001226
4COVER, COIL
4B5304455650 Frigidaire Refrigerator Screw
4ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
55300158289 Frigidaire Evaporator Fan Motor
6RING-FAN ORIFICE
6A5303208309 Frigidaire Refrigerator Plug Hole
7WCI 3001328
8G187559 Frigidaire Refrigerator Bushing
95308000010 Frigidaire Refrigerator Evaporator Fan Blade
10218843801 Frigidaire Refrigerator Screw
11DAMPER-FAN COVER
12WCI 3001451
13WCI 3001452
14Nut,push-on
15CHANNEL, RH & LH
16WCI 5303015409
175304455852 Frigidaire Refrigerator Screw
18DEFLECTRO, AIR, W/SEAL
18A5303001449 Frigidaire Refrigerator Seal
19WCI 5303001448
20COVER-UPPER HINGE, ALMOND
20WCI 5303001666
20COVER-UPPER HINGE, WHITE
20COVER-HINGE-AVOCADO
20COVER – HINGE-WHEAT
21ASHIM – UPPER HINGE
21BRACKET-UPPER HINGE
22WASHER, .34 X .62 X .05, NYLON
23WCI 5308000184
24BRACKET-CTR HINGE
25WCI 5308012258
26TUBE-RUBBER
27WCI 5303001286
28WCI 5303001287
29SUPPORT-COIL COVER
30AWCI 5303207353
30WCI 5303210377
31CLABEL-MEAT KPR DUCT
31AINSULATION-AIR DUCT, LOWER
31EINSULATION-AIR DUCT, UPPER
31DDUCT-MEAT KEEPER (UPPER)
31DUCT-MEAT KEEPER, LOWER
31BCONTROL-DAMPER, MEAT KPR DUCT
32WCI 5308000056
33TRIM-CABINET CORNER, WHITE
33WCI 5303202338
33TRIM-CABINET CORNER, ALMOND
33CORNER
33WCI 5303202339
34PLUG, COFFEE
34PLUG-BUTTON, ALMOND, UPR HINGE HOLES
34PLUG-BUTTON, WHITE
34BUTTON-HINGE-AVOCADO
34BUTTON-HINGE-WHEAT
35WCI 5308009773
36WCI 5308009760
37COVER-HOLE, LOWER HINGE
38SUPPORT, BASE (2)
39A5304455651 Frigidaire Refrigerator Screw
39BBOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
39WCI 5308009790
40SCREW-LEVELING (4)
41BOLT
42WCI 5308011326
43WCI 5308003584
44241710601 Frigidaire Refrigerator Screw
45HINGE BRACKET – BOTTOM
46SHIM-LOWER HINGE
475303001321 Frigidaire Refrigerator Lower Hinge Pin
48BEXTENSION, AIR DEFLECTOR, WITH INSULATION
48WCI 5308000186
48ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
49WCI 5303001361
50CABINET BASE
