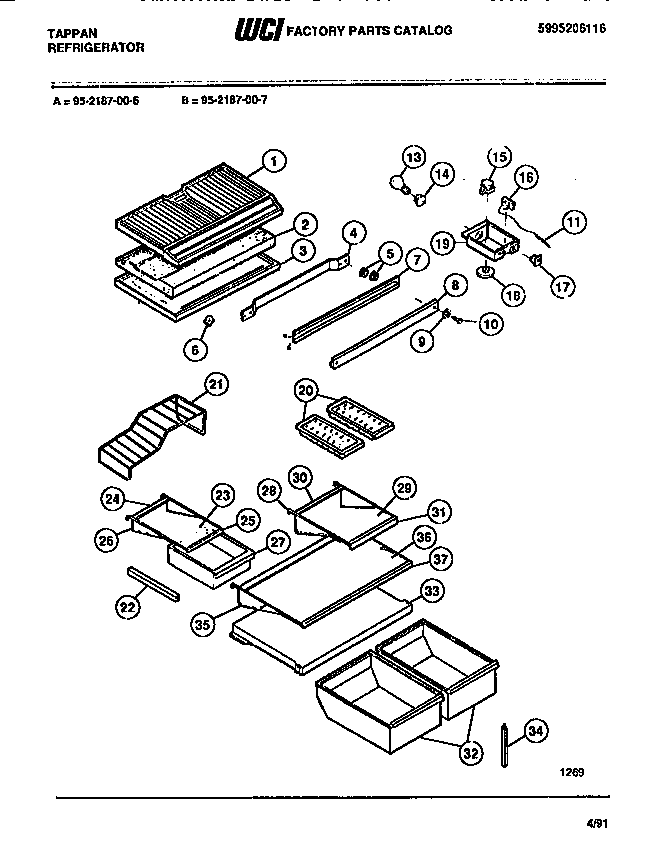

95-2187-00-06 03 – SHELVES, CONTROLS, DIVIDER, MULLION

95-2187-00-06 03 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

95-2187-00-06 03 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1BOTTOM, FREEZER
2WCI 5308013674
2AHARNESS-DIVIDER (NON-ILLUSTRATED)
3TOP-REFRIGERATOR
4WCI 5308010008
5SPACER-MULLION MTG, STEEL
65309918806 Frigidaire Refrigerator Light Switch Door
7WCI 5303210351
8WCI 5303200366
9WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
10WCI 5308012258
11TUBE
13316538904 Frigidaire Oven Lamp Light
14SOCKET-LIGHT/LAMP
15A5304455649 Frigidaire Refrigerator Screw
15215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16AWCI 5303001260
16WCI 5308015762
17SWITCH-ENERGY SAVER, SLIDE TYPE
18WCI 3001335
19CONTROL BOX
19ALABEL-CONTROL BOX
20215667501 Frigidaire Refrigerator Ice Tray Primary
21SHELF-FREEZER
22HANGER-PAN LH
22AHANGER-PAN RH (NON-ILLUSTRATED)
22BWCI 08014528
24WCI 3001427
26WCI 3001430
27WCI 3001440
28WCI 3001423
29WCI 3001424
30TRIM-REAR (2)
31WCI 3001426
32PAN-CRISPER, RH
32APAN-CRISPER, LH
33COVER-CRISPER
34SUPPORT-CRISPER CVR, ADJUSTABLE
35WCI 3001432
36WCI G171654-11
37AWCI 5317243605
37WCI 3001435
