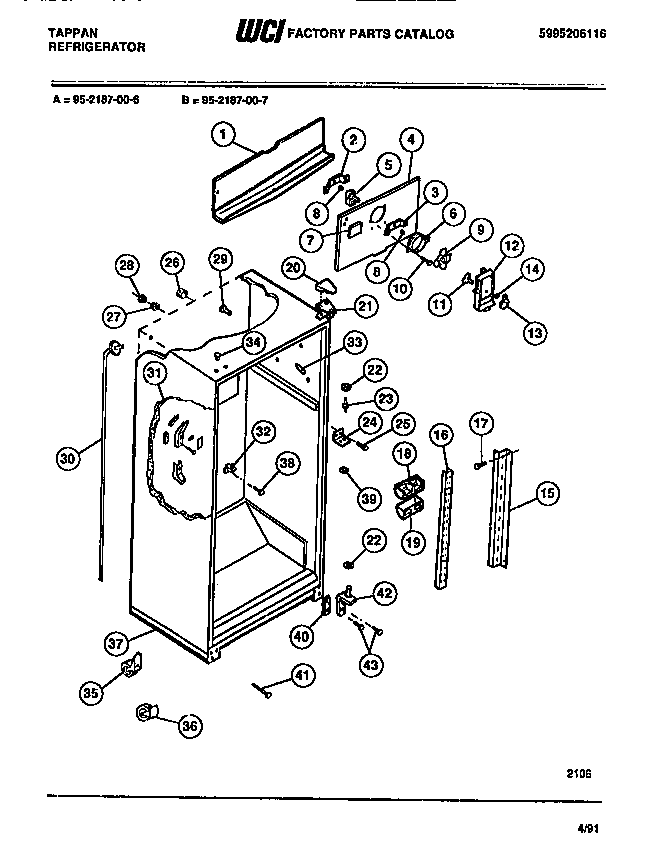

95-2187-00-06 04 – CABINET W/FAN ASSEMBLY

Products

PositionProduct
1WCI 5303001470
2BRACKET-MOTOR MTG, REAR
3WCI 5303205118
3AWCI 5308000107
4ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
4COVER, COIL
55300158289 Frigidaire Evaporator Fan Motor
6A5303208309 Frigidaire Refrigerator Plug Hole
6RING-FAN ORIFICE
7BUTTON – DECORATIVE PLUG
8G187559 Frigidaire Refrigerator Bushing
95308000010 Frigidaire Refrigerator Evaporator Fan Blade
105304455650 Frigidaire Refrigerator Screw
11DAMPER-FAN COVER
12WCI 3001451
13WCI 5308011762
14Nut,push-on
15CHANNEL, RH & LH
16WCI 5303015409
175304455852 Frigidaire Refrigerator Screw
18AEXTENSION, AIR DEFLECTOR, WITH INSULATION
18DEFLECTRO, AIR, W/SEAL
18B5303001449 Frigidaire Refrigerator Seal
19WCI 5303001448
20COVER-UPPER HINGE, WHITE
21ASHIM – UPPER HINGE
21BRACKET-UPPER HINGE
22WASHER, .34 X .62 X .05, NYLON
23WCI 5308000184
24BRACKET-CTR HINGE
25WCI 5308012258
25ASHIM-LOWER HINGE
26TUBE-RUBBER
27WCI 5303001286
28WCI 5303001287
29SUPPORT-COIL COVER
30AWCI 5303210377
30WCI 5303207353
31AINSULATION-AIR DUCT, LOWER
31DUCT-MEAT KEEPER, LOWER
31BCONTROL-DAMPER, MEAT KPR DUCT
31DDUCT-MEAT KEEPER (UPPER)
31FWCI 5308016568
31EINSULATION-AIR DUCT, UPPER
31CLABEL-MEAT KPR DUCT
32WCI 5308000056
33TRIM-CABINET CORNER, WHITE
34PLUG-BUTTON, WHITE
35B5304455651 Frigidaire Refrigerator Screw
35BBOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
35WCI 5308009773
36WCI 5303212490
37WCI 5303212487
38WCI 5303001361
39WCI 5308000186
40WCI 5303212488
41BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
42BRACKET-LOWER HINGE, W/ HINGE PIN
43BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
43CTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
43241710601 Frigidaire Refrigerator Screw
43ATAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
