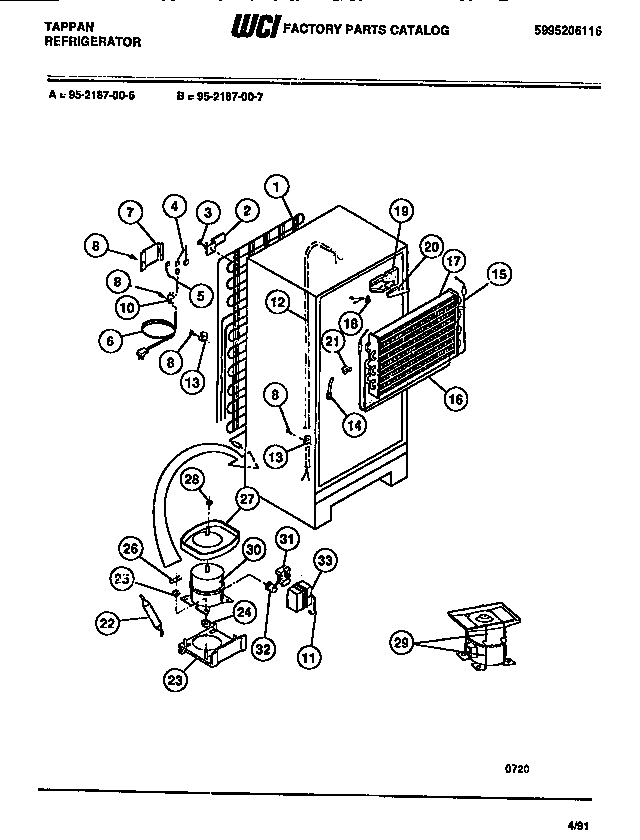

95-2187-00-07 05 – COOLING SYSTEM

95-2187-00-07 05 – COOLING SYSTEM

Written by

in

95-2187-00-07 05 – COOLING SYSTEM

Products

PositionProduct
1WCI 5300163133
2BRACKET, MOUNTIN, CONDENSER, (4)
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
35308000039 Frigidaire Refrigerator Screw
4HARNESS-DIVIDER (NON-ILLUSTRATED)
5WIRING HARNESS, COMPRESSOR,
6CORD-ELECTRIC POWER
7WCI 5303001197
85304455651 Frigidaire Refrigerator Screw
105303001199 Frigidaire Refrigerator Wiring Harness Clamp
11AWCI 5303211232
12WCI 5308000728
135308000133 Frigidaire Refrigerator Clamp
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
155317842502 Frigidaire Defrost Heater
16INSULATOR-EVAP, PLASTIC
17EVAPORATOR
185303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19INSULATION BLOCK, RH
20INSULATION PLUG, RH
21INSULATION BLOCK, LH
225303305677 Frigidaire Replacement Filter Dryer Filters
23WCI 5308013663
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WASHER-COMPR MTG
26CLIP – COMPRESSOR MTG
27APAN-DEFROST-ORIG COMPRESSOR
27PAN-DEFROST DRAIN, ORIG/SVCE COMPR
27B5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
28Nut,lock `1/4-20 ,drain pan mtg
29PAN RETAINER KIT, SERVICE
30ACAPACITOR
30COMPRESSOR W/ ELECTRICALS
31RELAY-TL
32AWCI 5303270294
33BHOT TUBE REPAIR KIT-SERVICE
33AWCI 5303209254
