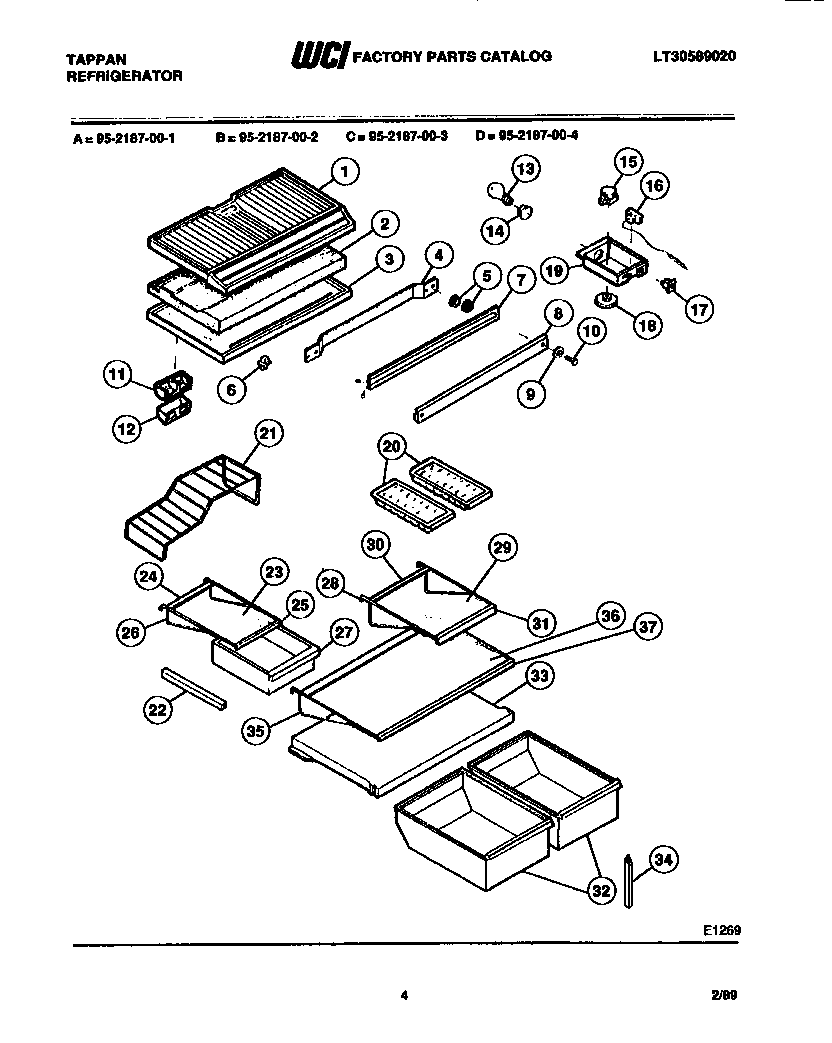

95-2187-00-4 03 – SHELVES

Products

Position	Product
*24320	HARNESS-DIVIDER (NON-ILLUSTRATED)
*24322	TRIM, REAR (2)
*24321	WCI 3001339
*24323	5303001449 Frigidaire Refrigerator Seal
1	BOTTOM-FREEZER
2	WCI 3001474
3	TOP-REFRIGERATOR
4	STRAP--MULLION MOUNTING
5	WCI 3001370
6	5309918806 Frigidaire Refrigerator Light Switch Door
7	WCI 3001467
8C	WCI 3200369
8	WCI 3200366
8A	MULLION-AVOC
8B	WCI 3200368
8D	WCI 3200370
9	WCI 3006446
10	SCREW, HINGE (4) NO. 10-24 X 7/8
11	WCI 3001447
13	316538904 Frigidaire Oven Lamp Light
14	WCI 3001267
15	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17	WCI 3001670
18	WCI 3001335
19	CONTROL BOX
20	215667501 Frigidaire Refrigerator Ice Tray Primary
21	SHELF-FREEZER
22A	HANGER-PAN RIGHT SIDE (NON-ILLUSTRATED)
22	HANGER-PAN LEFT SIDE
25	WCI 3001426
26	WCI 3001430
27	WCI 3001440
28	WCI 3001423
29	WCI 3001424
30	WCI 3001427
32	PAN-CRISPER, RIGHT SIDE
32A	PAN-CRISPER, LEFT SIDE
33	COVER-CRISPER
34	SUPPORT-PAN COVER
35	WCI 3001432
36	WCI G171654-11
37	WCI 3001435
