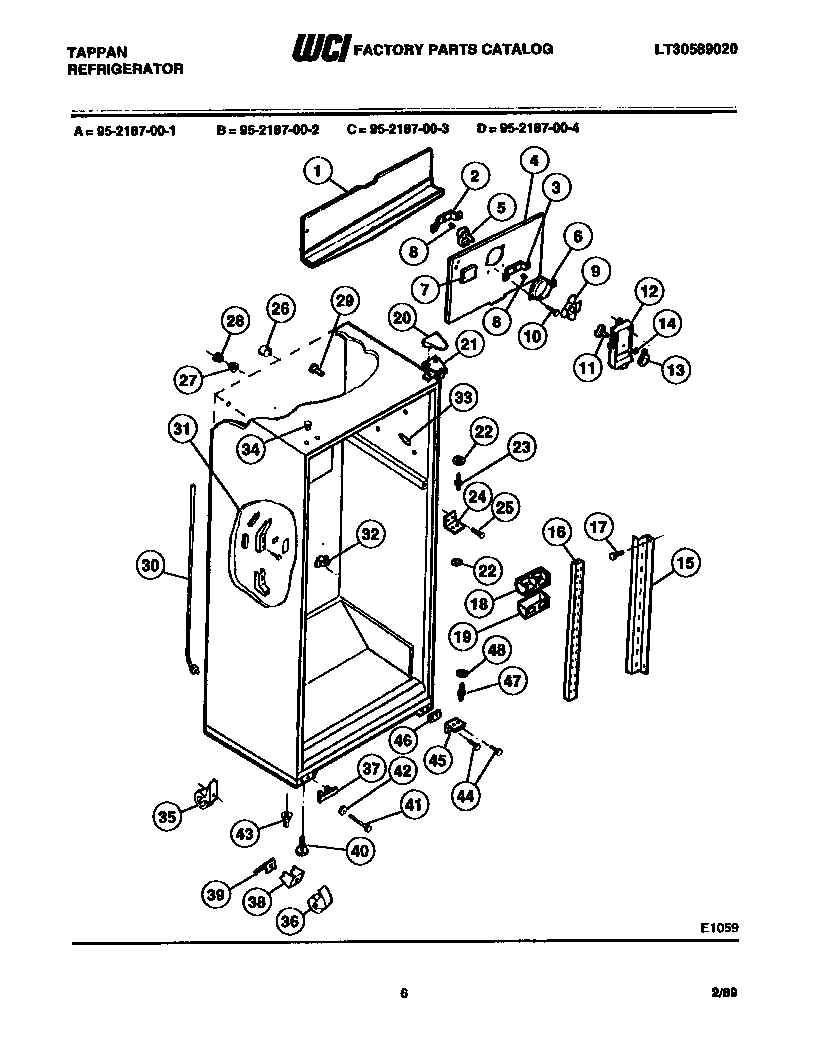

95-2187-00-4 04 – CONTROL

Products

Position	Product
*24325	NUT, ORIFICE (2)
*24329	WCI 3007090
*24324	WCI 3001220
*24327	SHIM-TOP HINGE
*24326	5303001449 Frigidaire Refrigerator Seal
1	DRAIN TROUGH
2	WCI 3001227
3	WCI 3001226
4	WCI 3001463
5	5300158289 Frigidaire Evaporator Fan Motor
6	WCI 3001217
7	SUPPORT COVER
8	G187559 Frigidaire Refrigerator Bushing
9	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
10	5304455651 Frigidaire Refrigerator Screw
11	WCI 3001331
12	WCI 3001451
13	WCI 3001452
14	WCI 3001028
15	CHANNEL-RS & LS
16	CHANNEL-CENTER (NON-ILLUSTRATED)
17	5304455852 Frigidaire Refrigerator Screw
18	WCI 3001447
19	WCI 3001448
20D	COVER, HINGE-ALMOND
20B	WCI 3001665
20A	COVER HINGE-AVOCADO
20	COVER, HINGE-WHITE
20C	COVER HINGE-COFFEE
21A	WCI 3001299
21	WCI 3001298
23	PIN-CENTER HINGE
24	HINGE BRACKET CENTER
25	SCREW, HINGE (4) NO. 10-24 X 7/8
26	WCI 3001198
27	WCI 3001286
28	WCI 3001287
29	SUPPORT COIL COVER
30	WCI 3001458
31D	WCI 3001441
31E	WCI 3001442
31	WCI 3001443
31B	WCI 3001445
31C	LABEL-MEAT KPR DUCT
31A	WCI 3001444
32	SPOUT-DRAIN TUBE
33A	CORNER TRIM-AVOCADO
33B	TRIM, CAB. COR. WEAT (4)
33	WCI 3001480
33D	TRIM, CAB. COR. ALMD (4)
33C	CORNER TRIM-COFFEE
34A	PLUG HINGE-AVOCADO
34D	BUTTON, PLUG, ALMD (2)
34	PLUG HINGE-WHITE
34C	PLUG HINGE-COFFEE
34B	PLUG-WHEAT (2)
35	ROLLER-REAR (2)
36	ROLLER-FRONT (2)
37	WCI 3001478
38	SUPPORT-ROLLER (2)
39	SPRING-ROLLER ADJ (2)
40	WCI 3001301
41	SCREW-ROLLER ADJUSTMENT
42	WASHER-NYLON (2)
43	WCI 3001412
44	241710601 Frigidaire Refrigerator Screw
45	HINGE BRACKET BOTTOM
46	SHIM-BOTTOM HINGE
47	5303001321 Frigidaire Refrigerator Lower Hinge Pin
48	WCI 3001038
