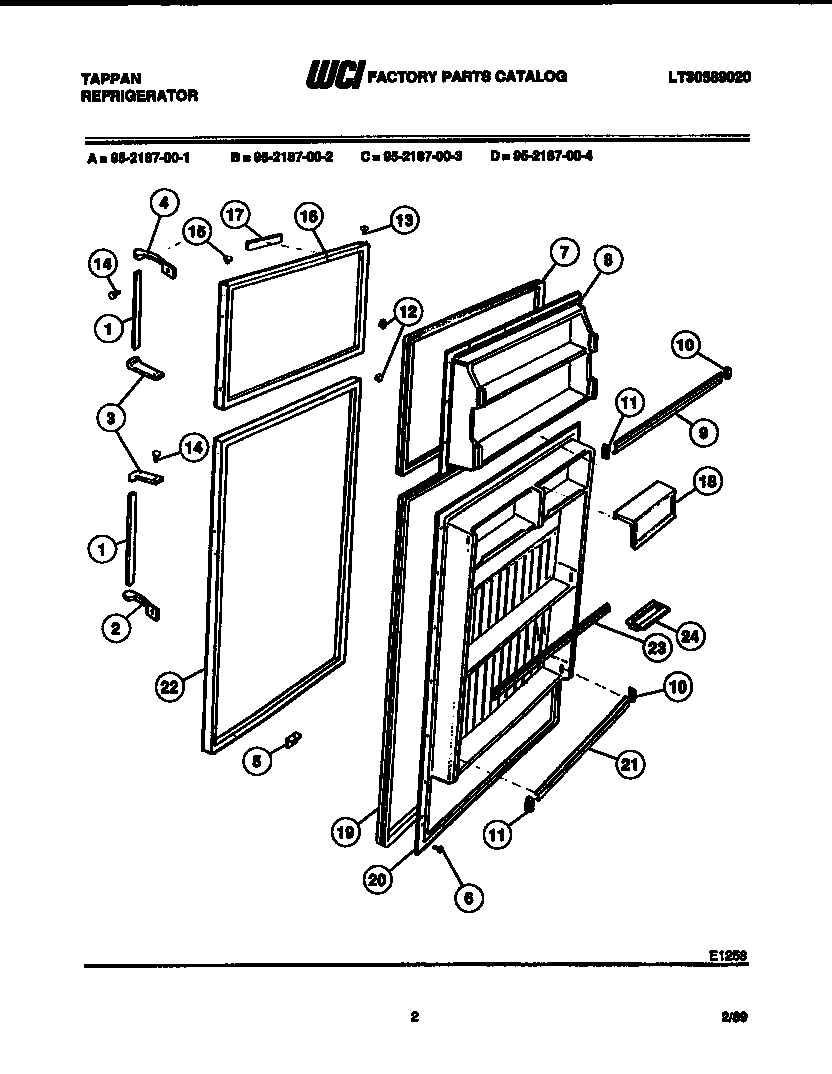

95-2187-23-04 02 – DOOR PARTS

95-2187-23-04 02 – DOOR PARTS

Written by

in

95-2187-23-04 02 – DOOR PARTS

Products

PositionProduct
1GRIP-HANDLE (2)
2WCI 3001295
3WCI 3001296
4WCI 3001297
5STOP-DOOR (2)
65304455651 Frigidaire Refrigerator Screw
7WCI 3001407
8PANEL-INNER
10SUPPORT DOOR RACK RH (4)
11SUPPORT DOOR RACK LH (4)
12WCI G162977-11
13WCI G169332-11
14SCREW HANDLE (8)
15WCI 3001021
16FREEZER DOOR-ALMOND
17WCI 3001312
18DOOR-COMPARTMENT (2)
19GASKET REFRIGERATOR DOOR
20PANEL-INNER
21WCI 3001418
22REFRIGERATOR DOOR-ALMOND
23WCI 3001409
245308000716 Frigidaire Refrigerator Dish
