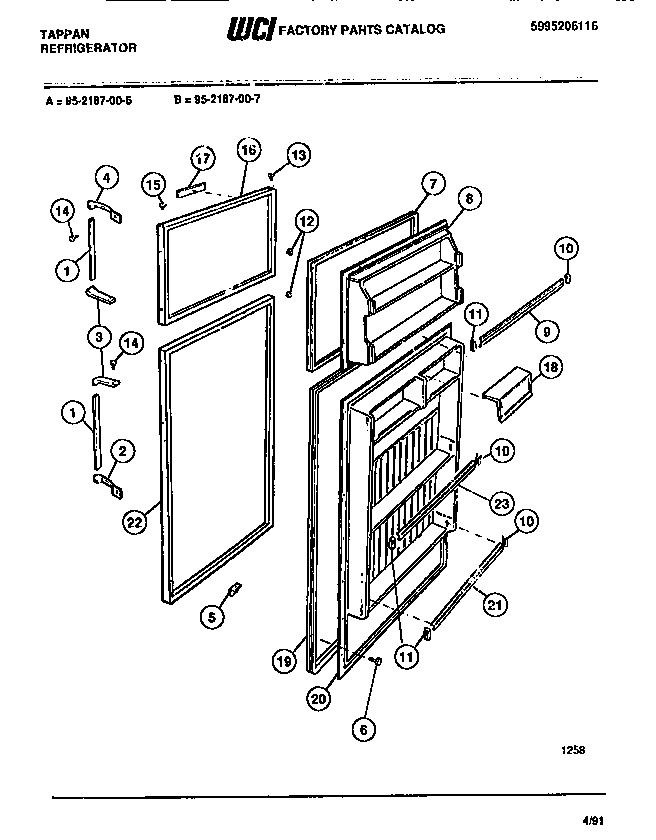

95-2187-45-06 02 – DOOR SECTION

95-2187-45-06 02 – DOOR SECTION

Written by

in

95-2187-45-06 02 – DOOR SECTION

Products

PositionProduct
1HANDLE-DOOR, BLACK VINYL, REFR/FRZR, (2)
2BOTTOM HANDLE END CAP
3WCI 5303001296
4WCI 5303001297
5AWCI 5308000255
5DOOR STOP, REFR SECTION
65304455651 Frigidaire Refrigerator Screw
7GASKET-FRZR
8PANEL-INNER
10SUPPORT-DOOR RACK, RH
11SUPPORT-DOOR RACK, LH
12BUTTON PLUG-COFFEE
13BUTTON PLUG-COFFEE
14WCI 5308011745
15BEARING-HINGE
16FREEZER DOOR-ALMOND
16FREEZER DOOR-COFFEE
17WCI 3001312
18DOOR-DAIRY
19GASKET-REFRIG DOOR
20PANEL-INNER
21WCI 5303001418
22PANEL-OUTER-COFFEE
23WCI 3001409
