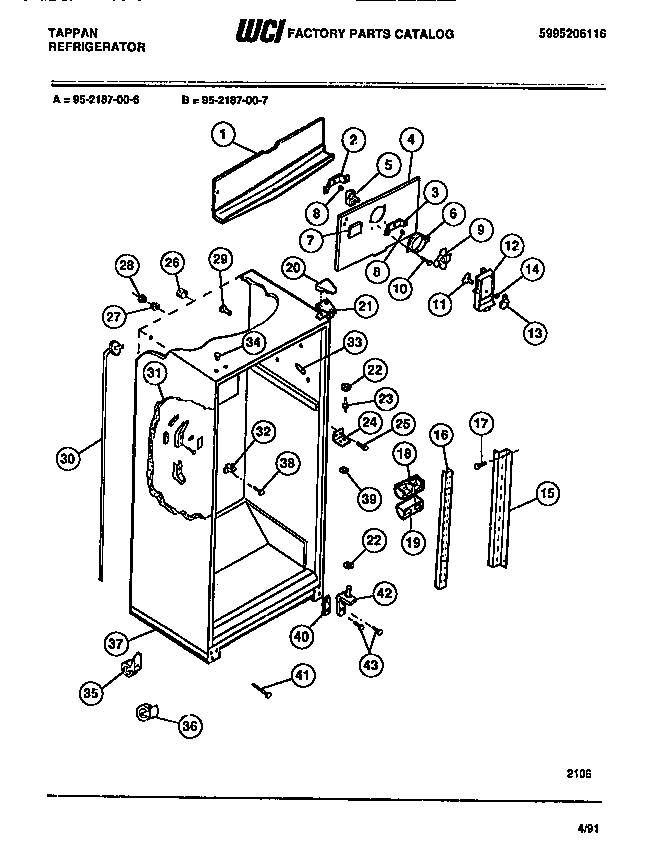

95-2187-45-06 04 – CABINET W/FAN ASSEMBLY

95-2187-45-06 04 – CABINET W/FAN ASSEMBLY

Written by

in

95-2187-45-06 04 – CABINET W/FAN ASSEMBLY

Products

PositionProduct
1WCI 5303001470
2BRACKET-MOTOR MTG, REAR
3AWCI 5308000107
3WCI 5303205118
4COVER, COIL
4ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
55300158289 Frigidaire Evaporator Fan Motor
6RING-FAN ORIFICE
6A5303208309 Frigidaire Refrigerator Plug Hole
7BUTTON – DECORATIVE PLUG
8G187559 Frigidaire Refrigerator Bushing
95308000010 Frigidaire Refrigerator Evaporator Fan Blade
105304455650 Frigidaire Refrigerator Screw
11DAMPER-FAN COVER
12WCI 3001451
13WCI 5308011762
14Nut,push-on
15CHANNEL, RH & LH
16WCI 5303015409
175304455852 Frigidaire Refrigerator Screw
18AEXTENSION, AIR DEFLECTOR, WITH INSULATION
18B5303001449 Frigidaire Refrigerator Seal
18DEFLECTRO, AIR, W/SEAL
19WCI 5303001448
20CWCI 5303001666
21BRACKET-UPPER HINGE
21ASHIM – UPPER HINGE
22WASHER, .34 X .62 X .05, NYLON
23WCI 5308000184
24BRACKET-CTR HINGE
25ASHIM-LOWER HINGE
25WCI 5308012258
26TUBE-RUBBER
27WCI 5303001286
28WCI 5303001287
29SUPPORT-COIL COVER
30WCI 5303207353
30AWCI 5303210377
31AINSULATION-AIR DUCT, LOWER
31DUCT-MEAT KEEPER, LOWER
31CLABEL-MEAT KPR DUCT
31BCONTROL-DAMPER, MEAT KPR DUCT
31DDUCT-MEAT KEEPER (UPPER)
31EINSULATION-AIR DUCT, UPPER
31FWCI 5308016568
32WCI 5308000056
33CWCI 5303202339
34CPLUG, COFFEE
35B5304455651 Frigidaire Refrigerator Screw
35WCI 5308009773
35BBOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
36WCI 5303212490
37WCI 5303212487
38WCI 5303001361
39WCI 5308000186
40WCI 5303212488
41BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
42BRACKET-LOWER HINGE, W/ HINGE PIN
43BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
43ATAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
43241710601 Frigidaire Refrigerator Screw
43CTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
