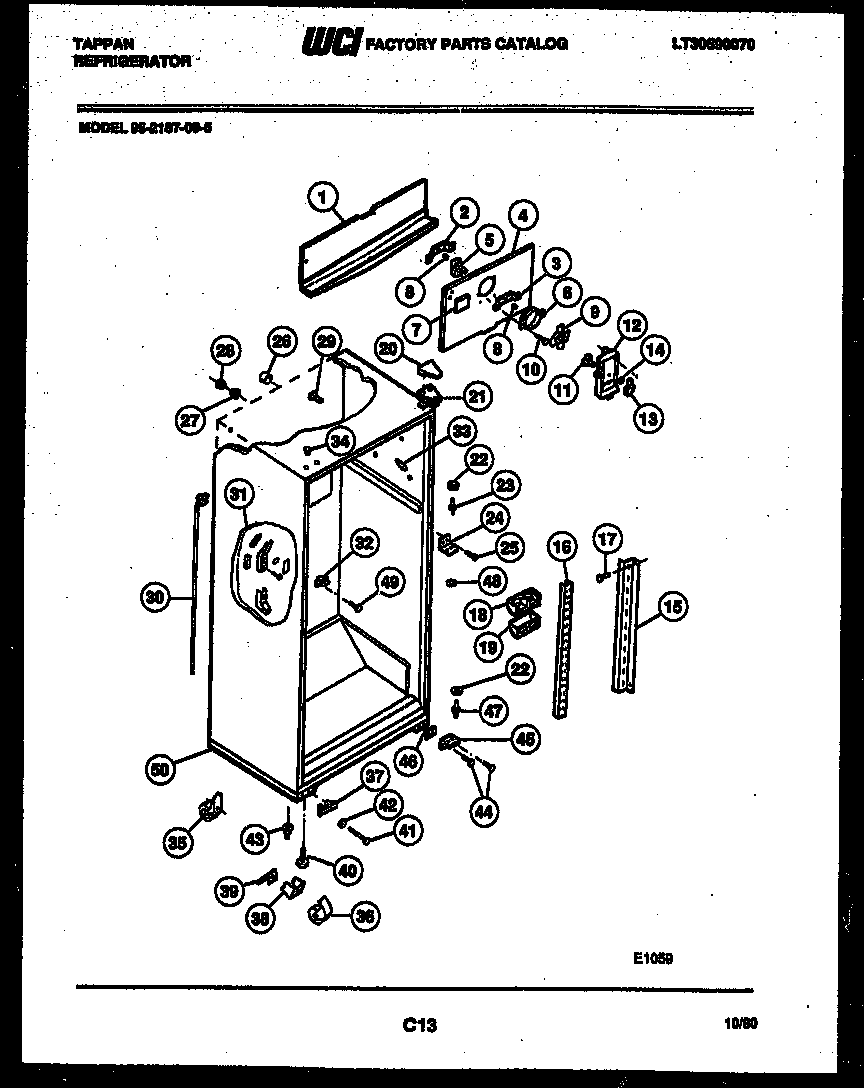

95-2187-57-05 04 – CABINET PARTS

Products

Position	Product
1	WCI 5303001470
2	BRACKET-MOTOR MTG, REAR
3A	WCI 5308000107
3	WCI 5303001226
4B	5304455650 Frigidaire Refrigerator Screw
4A	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
4	COVER, COIL
5	5300158289 Frigidaire Evaporator Fan Motor
6A	5303208309 Frigidaire Refrigerator Plug Hole
6	RING-FAN ORIFICE
7	WCI 3001328
8	G187559 Frigidaire Refrigerator Bushing
9	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
10	218843801 Frigidaire Refrigerator Screw
11	DAMPER-FAN COVER
12	WCI 3001451
13	WCI 3001452
14	Nut,push-on
15	CHANNEL, RH & LH
16	WCI 5303015409
17	5304455852 Frigidaire Refrigerator Screw
18	DEFLECTRO, AIR, W/SEAL
18A	5303001449 Frigidaire Refrigerator Seal
19	WCI 5303001448
20	COVER-HINGE-AVOCADO
21A	SHIM - UPPER HINGE
21	BRACKET-UPPER HINGE
22	WASHER, .34 X .62 X .05, NYLON
23	WCI 5308000184
24	BRACKET-CTR HINGE
25	WCI 5308012258
26	TUBE-RUBBER
27	WCI 5303001286
28	WCI 5303001287
29	SUPPORT-COIL COVER
30	WCI 5303210377
30A	WCI 5303207353
31A	INSULATION-AIR DUCT, LOWER
31	DUCT-MEAT KEEPER, LOWER
31C	LABEL-MEAT KPR DUCT
31E	INSULATION-AIR DUCT, UPPER
31D	DUCT-MEAT KEEPER (UPPER)
31B	CONTROL-DAMPER, MEAT KPR DUCT
32	WCI 5308000056
33	CORNER
34	BUTTON-HINGE-AVOCADO
35	WCI 5308009773
36	WCI 5308009760
37	COVER-HOLE, LOWER HINGE
38	SUPPORT, BASE (2)
39	WCI 5308009790
39B	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
39A	5304455651 Frigidaire Refrigerator Screw
40	SCREW-LEVELING (4)
41	BOLT
42	WCI 5308011326
43	WCI 5308003584
44	241710601 Frigidaire Refrigerator Screw
45	HINGE BRACKET - BOTTOM
46	SHIM-LOWER HINGE
47	5303001321 Frigidaire Refrigerator Lower Hinge Pin
48B	EXTENSION, AIR DEFLECTOR, WITH INSULATION
48A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
48	WCI 5308000186
49	WCI 5303001361
50	CABINET BASE
