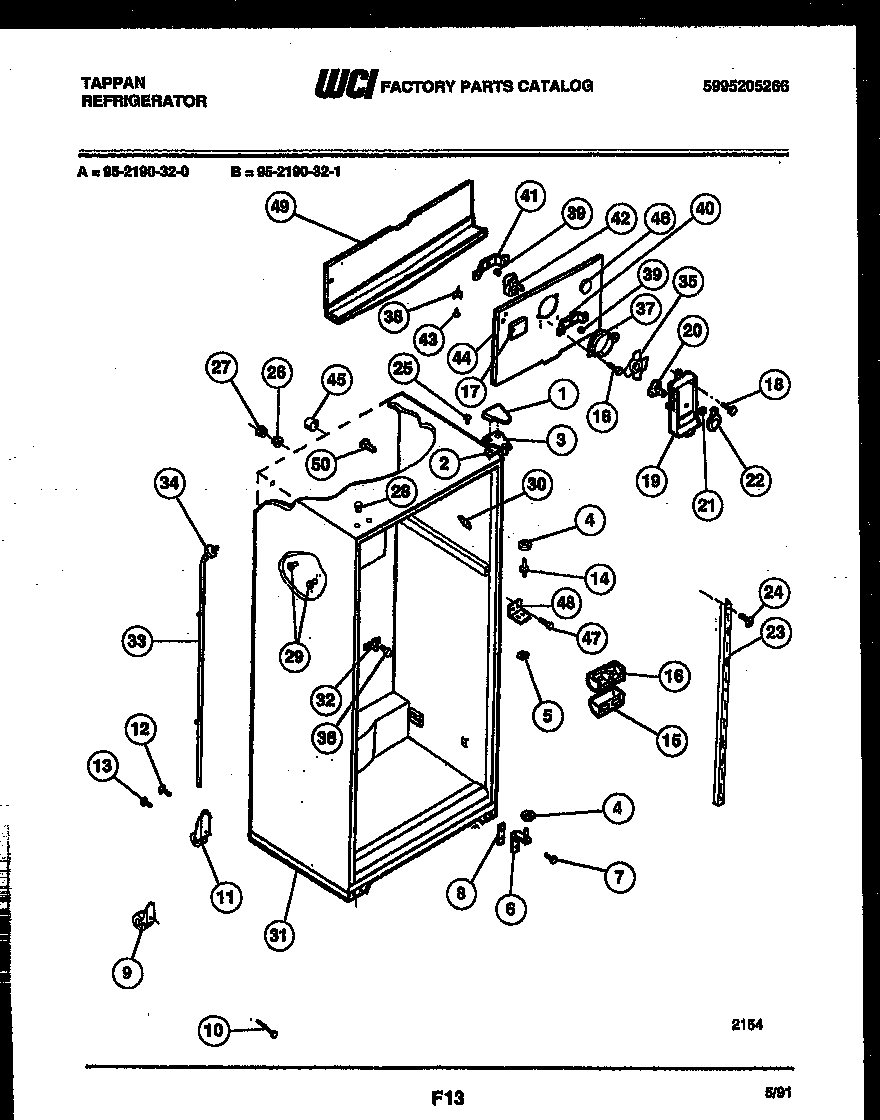

95-2190-32-00 03 – CABINET PARTS

95-2190-32-00 03 – CABINET PARTS

Written by

in

95-2190-32-00 03 – CABINET PARTS

Products

PositionProduct
*50997PLUG, BUTTON, CABINET LINER (NI)
1COVER-UPPER HINGE, BLACK
2SHIM – UPPER HINGE
3BRACKET-UPPER HINGE
4WASHER, .34 X .62 X .05, NYLON
5WCI 5308000186
6ATAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
6BTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
6BRACKET-LOWER HINGE, W/ HINGE PIN
7241710601 Frigidaire Refrigerator Screw
8WCI 5303212488
9WCI 5303212490
10BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
11WCI 5308009773
125304455651 Frigidaire Refrigerator Screw
13BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
14WCI 5308000184
15WCI 5303001448
16DEFLECTRO, AIR, W/SEAL
16AEXTENSION, AIR DEFLECTOR, WITH INSULATION
17BUTTON – DECORATIVE PLUG
19BWCI 5303272421
19AWCI 5303272420
19COVER-FAN
20DAMPER-FAN COVER
21Nut,push-on
22WCI 5303272422
23CHANNEL, RH & LH
245304455852 Frigidaire Refrigerator Screw
26WCI 5303001286
27WCI 5303001287
28PLUG-BUTTON,BLACK
295304500407 Frigidaire Refrigerator Shelf Mounting Grommet
295304509705 Frigidaire Refrigerator Grommet
30WCI 5303272428
31WCI 5303212487
32WCI 5308000056
33WCI 5303210377
34WCI 5303207353
355308000010 Frigidaire Refrigerator Evaporator Fan Blade
36WCI 5303001361
37RING-FAN ORIFICE
38WCI 5308000107
39G187559 Frigidaire Refrigerator Bushing
40WCI 5303205118
41BRACKET-MOTOR MTG, REAR
425300158289 Frigidaire Evaporator Fan Motor
44ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
44COVER, COIL
44B5304455650 Frigidaire Refrigerator Screw
45TUBE-RUBBER
465303208309 Frigidaire Refrigerator Plug Hole
47WCI 5308012258
48WCI 5303272429
49WCI 5303001470
50SUPPORT-COIL COVER
