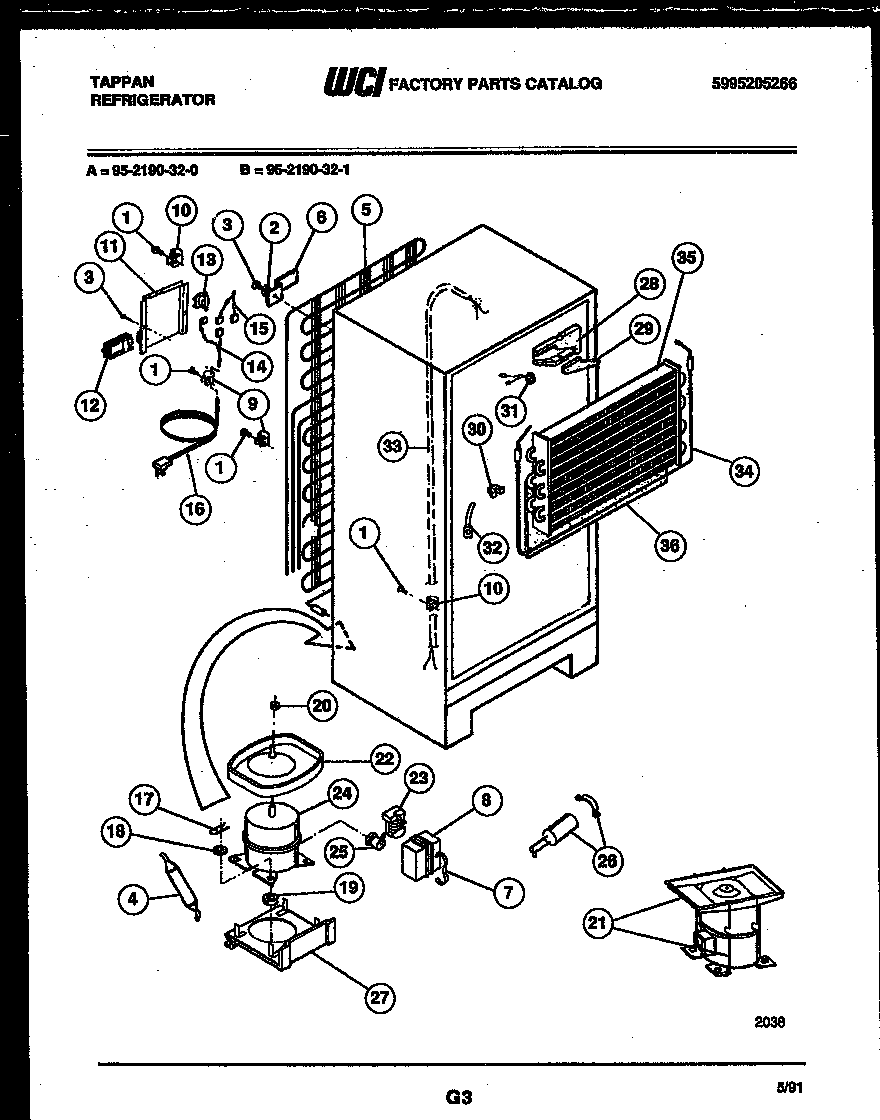

95-2190-32-00 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*51013HOT TUBE REPAIR KIT-SERVICE
15304455651 Frigidaire Refrigerator Screw
2WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
35308000039 Frigidaire Refrigerator Screw
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 5300163133
6BRACKET-MTG (4)
75303006412 Frigidaire Refrigerator Cover Mounting Strap
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
10CLAMP, NYLON
11WCI 5303211914
12AWCI 5303212893
12WCI 5303211915
13WCI 5303211916
14WIRING HARNESS, COMPRESSOR,
15WCI 5303211926
16CORD-ELECTRIC POWER
17CLIP – COMPRESSOR MTG
18WASHER-COMPR MTG
19218513300 Frigidaire Refrigerator Compressor Mount Grommet
20A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
20Nut,lock `1/4-20 ,drain pan mtg
21PAN RETAINER KIT, SERVICE
22PAN-DEFROST DRAIN, ORIG/SVCE COMPR
23RELAY-TL
24COMPRESSOR W/ ELECTRICALS
25WCI 5308017532
26CAPACITOR
27WCI 5308013663
28INSULATION BLOCK, RH
29INSULATION PLUG, RH
30INSULATION BLOCK, LH
315303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
325308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
33WCI 5308000728
345317842502 Frigidaire Defrost Heater
35EVAPORATOR
36INSULATOR-EVAP, PLASTIC
