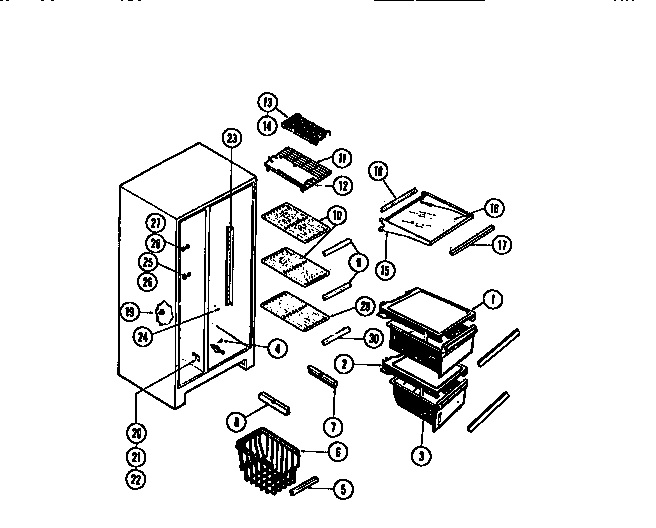

95-2487-00-01 05 – SHELVES, WATER TANK, 3-DOOR MULLION

95-2487-00-01 05 – SHELVES, WATER TANK, 3-DOOR MULLION

Written by

in

95-2487-00-01 05 – SHELVES, WATER TANK, 3-DOOR MULLION

Products

PositionProduct
1WCI 3001092
2WCI 3001093
3PAN-STORAGE-LOWER
4WCI 3001095
5WCI 3001096
6A5304455650 Frigidaire Refrigerator Screw
6BASKET-FREEZER
7WCI 3001098
8WCI 3001099
9AWCI 3001101
10SHELF-FREEZER-CTR (2)
11SHELF-FREEZER, LOWER
12LABEL – SHELF (NON-ILLUSTRATED)
13SHELF-FREEZER, UPPER
14LABEL-SHELF (NON-ILLUSTRATED)
15WCI 3001173
16WCI 3001174
17WCI 3001175
18WCI 3001176
20WCI 3001278
21WCI 3001279
22ABUTTON, PLUG LINER (NON-ILLUSTRATED)
22WCI 3001280
23WCI 3001270
24WCI 3001271
25SUPPORT-SHELF (2) (NON-ILLUSTRATED)
26SCREW-SUPPORT (2)
27SUPT-ICE MAKER (2)
28SCREW (2)
29SHELF-FREEZER-BOTTOM
30TRIM, SHELF
