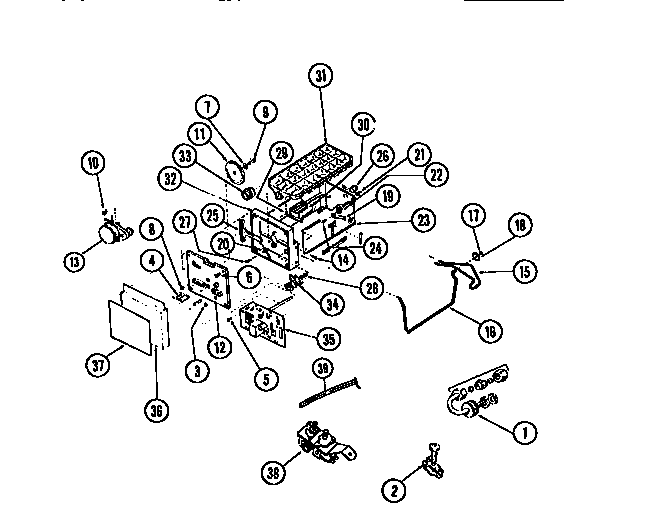

95-2487-00-01 10 – ICE MAKER COMPONENTS & INSTALLATION

Products

Position	Product
1	WCI 3001088
2	WCI 3001089
3	WCI 3001113
4	WCI 3001114
5	SCREW (5)
6	WCI 3001116
7	WCI 3001117
8	WCI 3001118
9	WCI 3001119
10	WCI 3001120
11	WCI 3001121
12	WCI 3001122
13	WCI 3001123
14A	RETAINER-SHUT OFF WIRE (NON-ILLUSTRATED)
14	WCI 3001124
15	WCI 3001126
16	WCI 3001127
17	RETAINING RING (NON-ILLUSTRATED)
18	WCI 3001129
19	WCI 3001130
20	WASHER
21	WCI 3001132
22	WCI 3001133
23	WCI 3001134
24	WCI 3001135
25	WCI 3001136
26	WCI 3001137
27	WCI 3001138
28	WCI 3001139
29	WCI 3001140
30	WCI 3001141
31	ICE TRAY
32	WCI 3001143
33	WCI 3001144
34	WCI 3001145
35A	5303001147 Frigidaire Refrigerator Plug-Harness Hole
35	WCI 3001146
36A	GUIDE-IM SCREW
36	FRONT-ICE MAKER
37	LABEL-ICE MAKER
38	WATER VALVE-SOLENOID
39A	WCI 3001191
39	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
