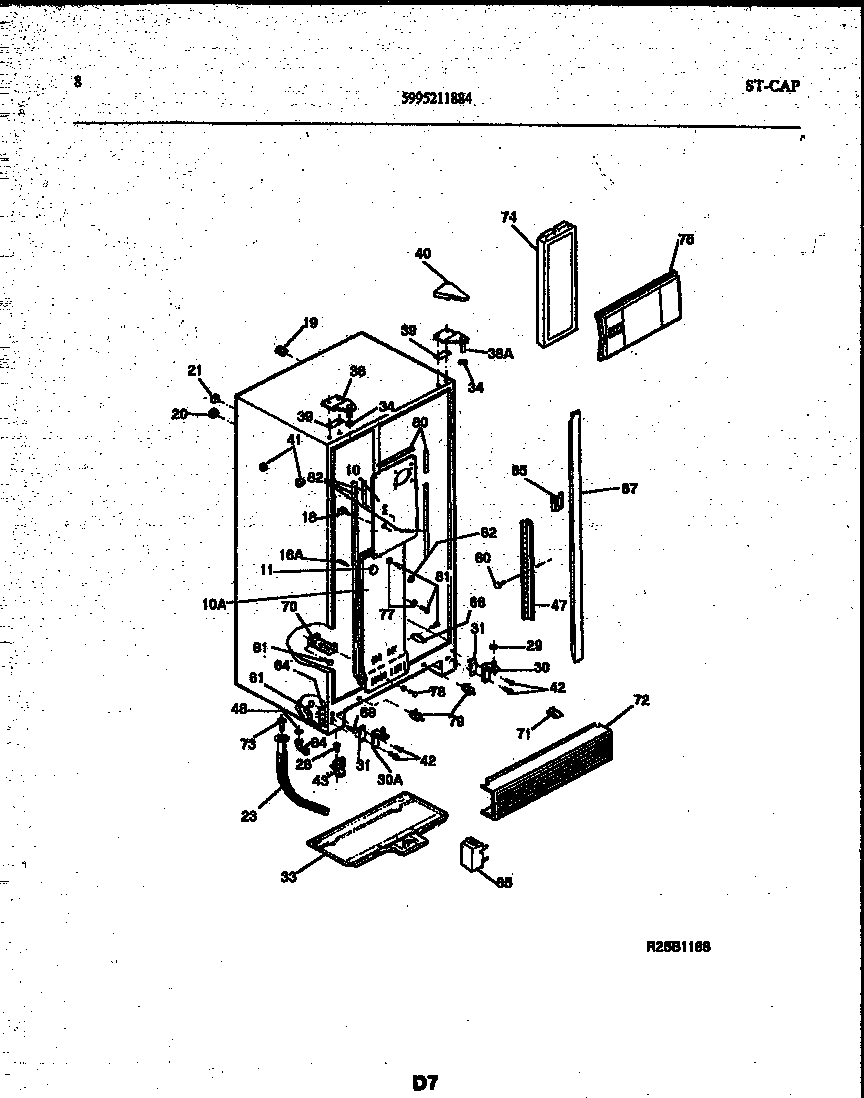

95-2491-00-00 05 – CABINET PARTS

95-2491-00-00 05 – CABINET PARTS

Written by

in

95-2491-00-00 05 – CABINET PARTS

Products

PositionProduct
*63702CLIP-WIRING HARNESS
*63701PUSH NUT-SCREW
47CHANNEL-SHELF MTG (2)
48NUT, 7/16 X 20, NYLON
605304455852 Frigidaire Refrigerator Screw
61WCI 5300077210
62WCI 5303001231
64WCI 5303001273
65WCI 5300169100
65WCI 5303001281
66DAMPER, MEAT KEEPER
67WCI 5303916444
68WCI 5308000013
70WCI 5308000738
71CLIP, GRILLE (2)
72WCI 5303208904
73WCI 5308000853
74LIGHT SHIELD-FREEZER
75WCI 5303279812
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
78AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
79ACLIP-CABLE
795303289051 Frigidaire Refrigerator Light Switch
80WCI 5303001219
815304455650 Frigidaire Refrigerator Screw
82WCI 5303001233
84WCI 5308010289
85COVER-BOTTOM HINGE
