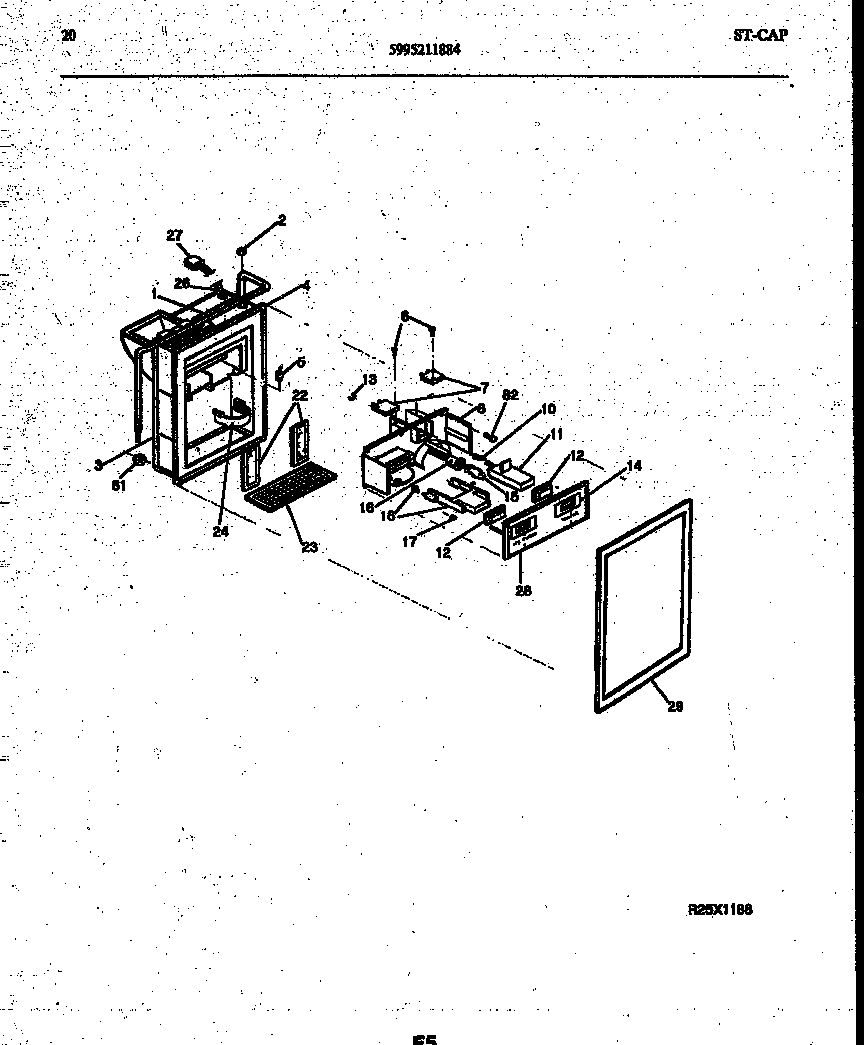

95-2491-00-00 11 – ICE DOOR, DISPENSER AND WATER TANK

Products

PositionProduct
*63724WCI 5318653301
1TUBE-WATER INLET & PILOT ASSY
2WCI 5303001066
3WCI 5308015588
4WCI 5303211547
5WCI 5308010326
6SCREW (4)
7WCI 5300185542
8PLATE-SWITCH MTG
10SPRING-WATER ACTUATOR
11WCI 5303001077
12LABEL-ACTIVATOR BUTTON (NON-ILLUSTRATED)
13WCI 5302832214
14WCI 5303279540
15WCI 5304506475
16SOCKET-LIGHT BULB
17WCI 5303001081
18ACTUATOR & CUP ASSY-ICE
22PAD-FILL (2)
23WCI 5303208909
24WCI 5318000402
26WCI 5303001082
27PLUG-HARNESS BOTTOM
28FRONT PANEL
29WCI 5317772106
61NUT, SELF-THREADING, 1/8
82SCREW (4)
