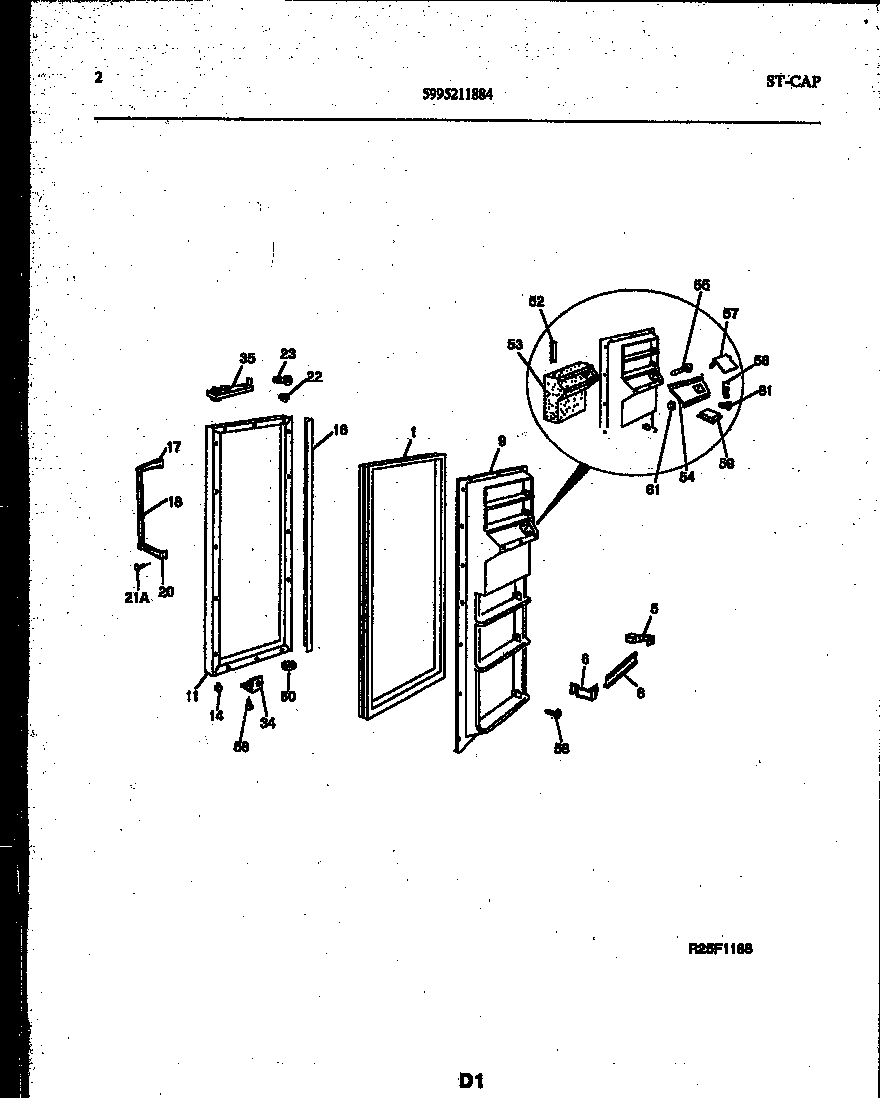

95-2491-00-01 02 – FREEZER DOOR PARTS

Products

Position	Product
*63687	INSULATION-BULK (NON-ILLUSTRATED)
1	GASKET-FREEZER DOOR
5	WCI 5303206366
6	WCI 5303206720
8	WCI 5303206707
9	PANEL-INNER DOOR, FRZR
11	WCI 5303917041
14	WCI 5315230801
16	TRIM-DOOR
17	HANDLE END
18	HANDLE GRIP
20	HANDLE END
21A	WCI 5308011745
22	WCI 5303001022
23	WCI 5303001020
34	WCI 5308000790
35	WCI 5303200272
52	WCI 5303001046
53	WCI 5308017045
54	WCI 3001055
54A	LABEL-DR PNL TRIM CVR (NON-ILLUSTRATED)
55	WCI 5303001048
56	SPRING-FLIPPER
57	WCI 5317504003
58	5304455651 Frigidaire Refrigerator Screw
59	WCI 5303211543
60	BUSHING-LOWER HINGE
61	NUT, SELF-THREADING, 1/8
81	5304455650 Frigidaire Refrigerator Screw
