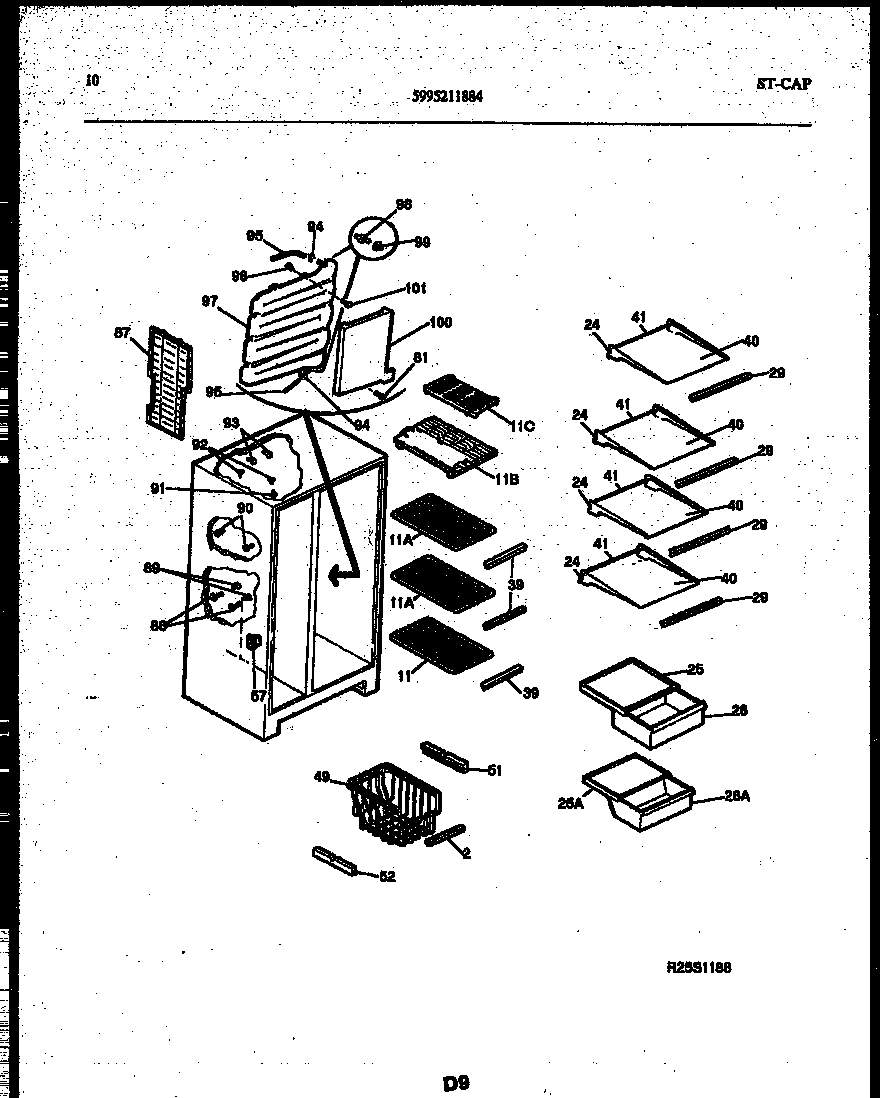

95-2491-00-01 06 – SHELVES AND SUPPORTS

Products

PositionProduct
2WCI 3001096
11BSHELF-FREEZER
11ASHELF-FREEZER-CENTER (2)
11SHELF-FREEZER-BOTTOM
11CSHELF-FREEZER (UPPER)
11DWCI 5317770602
11EWCI 5317770601
24FRAME-SHELF (3)
25COVER – UPPER PAN
25AWCI 5316972401
26APAN-STORAGE-LOWER
26WCI 5303279497
29TRIM-SHELF FRONT (4)
29ARETAINER-GLASS (3) (NON-ILLUSTRATED)
39TRIM (3)
40WCI 5303211546
41TRIM-SHELF REAR (4)
41ALOCK-SHELF TRIM, REAR
49WCI 5308001015
51WCI 5303001098
52WCI 5303001099
57WCI 5303271652
57WCI 5303271653
815304455650 Frigidaire Refrigerator Screw
87WCI 5308010353
88SUPPORT-SHELF (2)
89SCREW (2)
90WCI 5303001291
90ASCREW (2)
91SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
92SUPPORT-ICE ACCESS DR
93SUPPORT-SPEC BARREL (2)
