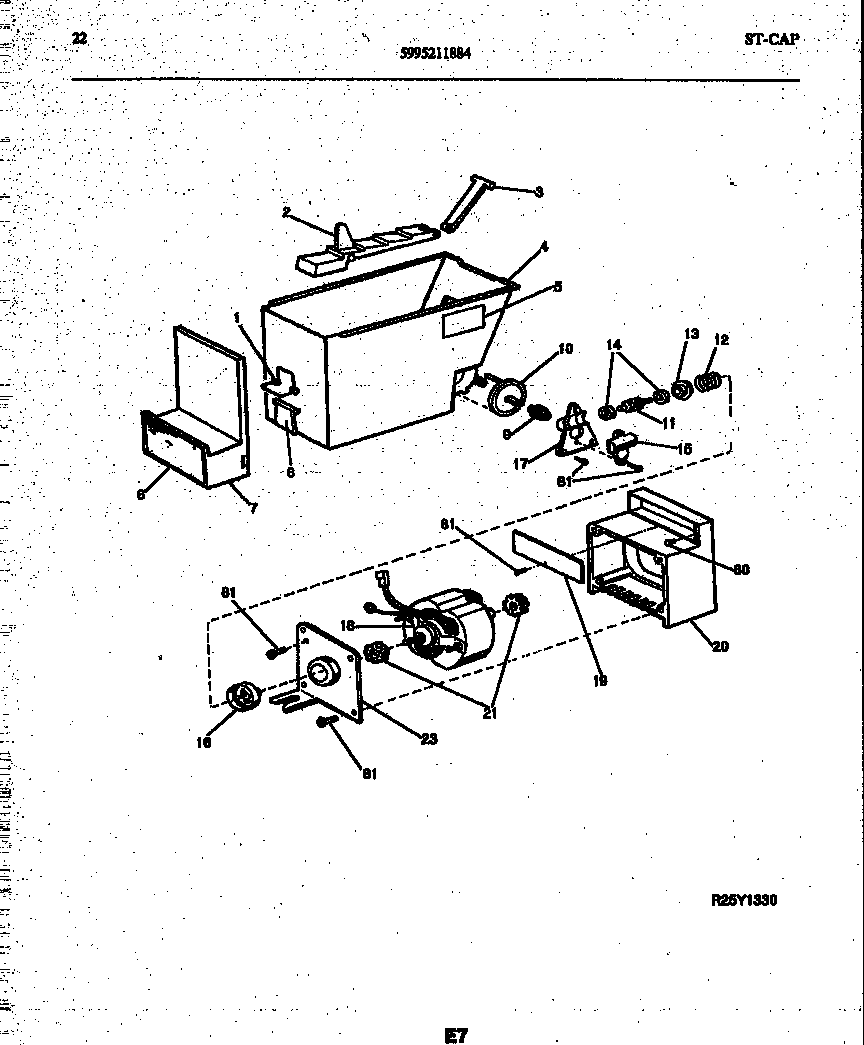

95-2491-00-01 12 – ICE DISPENSER

95-2491-00-01 12 – ICE DISPENSER

Written by

in

95-2491-00-01 12 – ICE DISPENSER

Products

PositionProduct
*63727WCI 08010378
1SPRING-ICE DOOR
2WCI 5301123547
3WCI 5317769703
4WCI 5317721303
5LABEL-ICE DISPENSER
6LABEL-ICE CONTAINER
7FRONT-ICE CONTAINER
8WCI 5317440701
9WORM GEAR-ICE RAM
10WCI 5301123568
11WORM-ICE RAM
12WCI 5301123767
13COUPLING-ICE DISP CONTAINER
14WCI 5301123508
15COVER-HOUSING ICE RAM
16WCI 5301123771
17WCI 5300174408
18WCI 5308017049
19COVER-ICE DISP MTR
20HOUSING-ICE DISP MTG
21GROMMET-ICE DISP MTR (2)
23WCI 5303001106
605304455852 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
