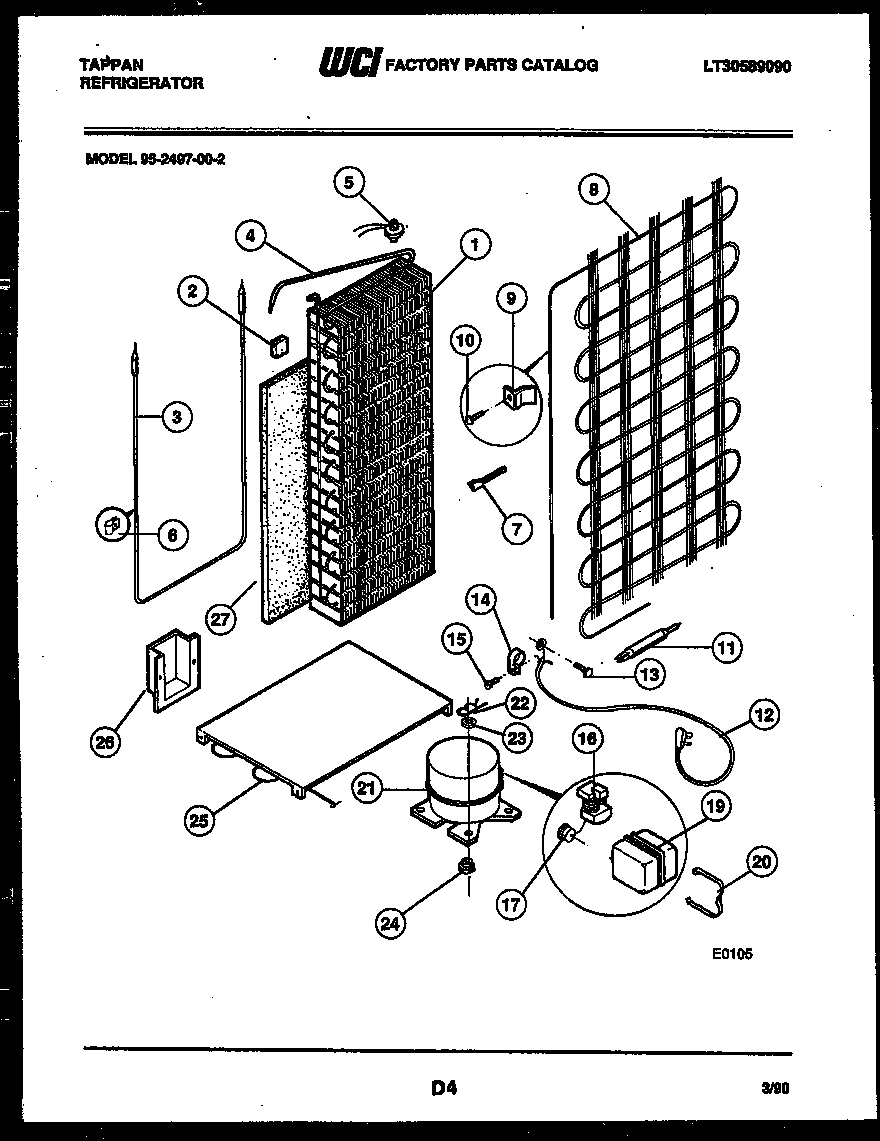

95-2497-00-02 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

95-2497-00-02 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

95-2497-00-02 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*36876WCI 5300189379
*36876WCI 5308009616
*36876WCI 5308009619
1WCI 5303916605
2WCI G169493
3WCI 5303007568
4WCI 5308017565
55303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6WCI G167363
75308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8WCI 5300188643
9BRACKET, COND. MTG (4)
9AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
115303305677 Frigidaire Replacement Filter Dryer Filters
11A5308000133 Frigidaire Refrigerator Clamp
11B218843801 Frigidaire Refrigerator Screw
12CORD, SERVICE
145303001199 Frigidaire Refrigerator Wiring Harness Clamp
155304455651 Frigidaire Refrigerator Screw
16RELAY-TL
17WCI 5308017526
205303006412 Frigidaire Refrigerator Cover Mounting Strap
21ACAPACITOR
21COMPRESSOR WITH ELECTRICALS
22CLIP – COMPRESSOR MTG
23WASHER, COMPRESSOR MOUNTING (4)
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25AWCI G171111
25CBRACKET-DEFROST PAN MTG (NON-ILLUSTRATED)
25B5308000039 Frigidaire Refrigerator Screw
25WCI 5308017118
26WCI G183584
27WCI G169641
