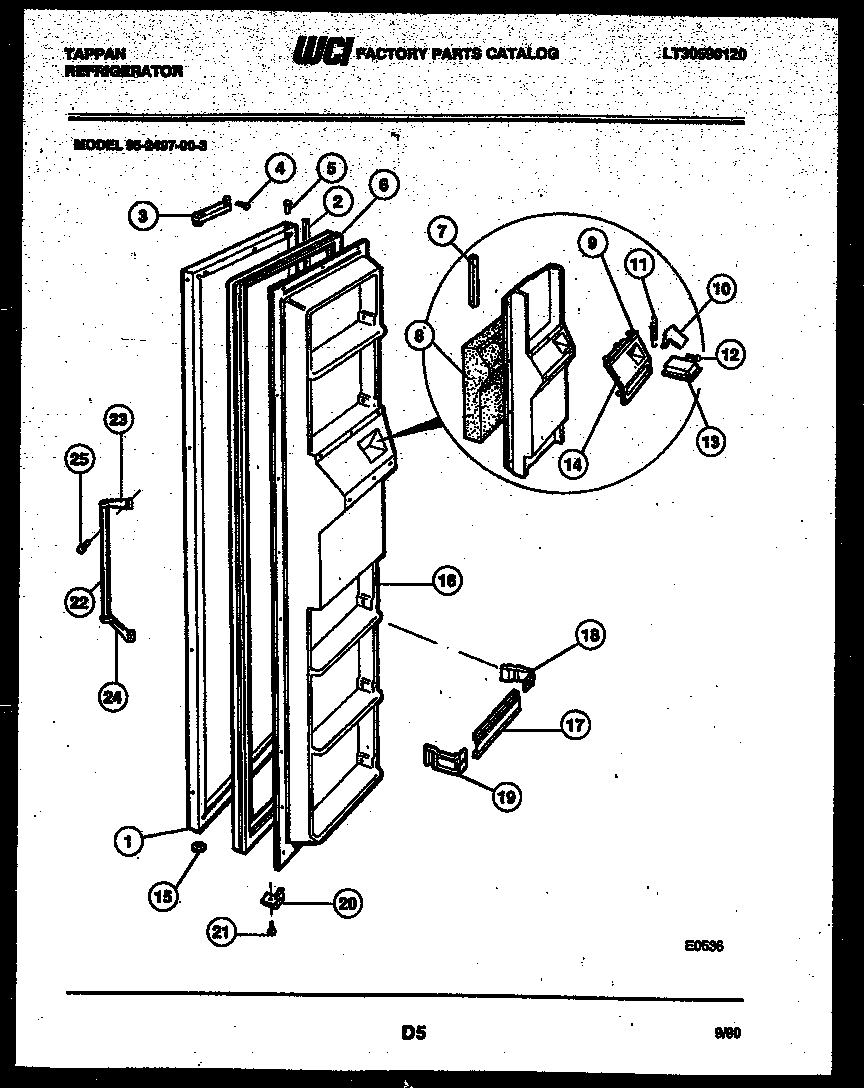

95-2497-00-03 02 – FREEZER DOOR PARTS

Products

Position	Product
*39551	INSULATION-BULK (NON-ILLUSTRATED)
1	WCI G188343
1	FREEZER DOOR-AVOCADO
1A	WCI 5315230801
1	WCI G188343-09
1	WCI G188343-10
1	WCI G188343-11
2	TRIM-DOOR
3	WCI 5303200272
4	WCI 3001020
5	WCI 5303001022
6	GASKET-FREEZER DOOR
7	WCI 5303001046
8	WCI 5308017045
9	WCI 5303001048
10	WCI 3001042
11	SPRING-FLIPPER
12	5304455650 Frigidaire Refrigerator Screw
13	WCI 5303211543
14A	LABEL-DR PNL TRIM CVR (NON-ILLUSTRATED)
14B	NUT, SELF-THREADING, 1/8
14	WCI 3001055
15	BUSHING-LOWER HINGE
16	PANEL-INNER DOOR, FRZR
17	WCI 5303206707
18	WCI 5303206366
19	WCI 5303206720
20	WCI 5308000790
21	218843801 Frigidaire Refrigerator Screw
22	HANDLE GRIP
23	HANDLE END
24	HANDLE END
25	WCI 5308011745
