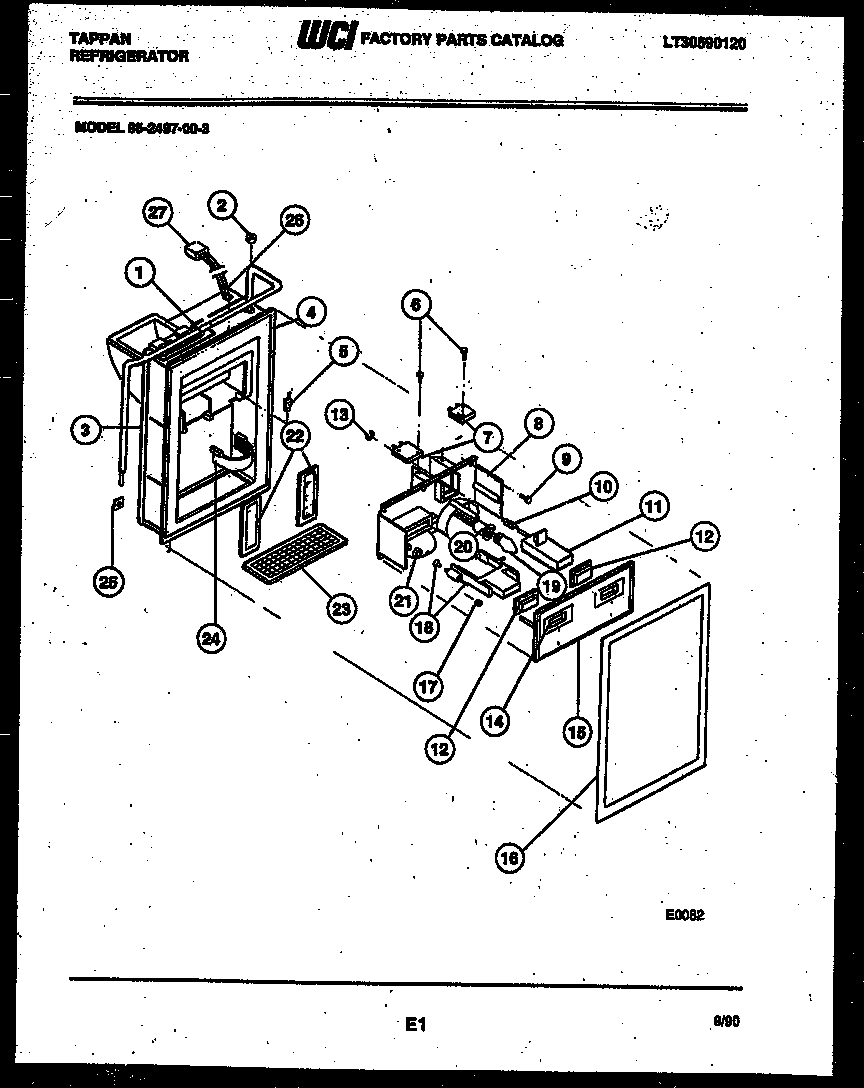

95-2497-00-03 07 – ICE DOOR, DISPENSER AND WATER TANK

Products

Position	Product
*39572	WCI 5318653301
1	WCI 5300188233
2	WCI 5303001066
3	WCI 5308015588
4	WCI 5303211547
5	WCI 5308010326
6	SCREW (4)
7	WCI 5300185542
8	PLATE-SWITCH MTG
9	SCREW (4)
10	SPRING-WATER ACTUATOR
11	WCI 5303001077
12A	LABEL-ACTIVATOR BUTTON (NON-ILLUSTRATED)
12	BUTTON-ICE
13	WCI 5300174411
14	WCI G182654-03
15	FRONT PANEL
16	WCI 5317772106
17	WCI 5303001081
18	ACTUATOR & CUP ASSY-ICE
19	WCI 5304506475
20	SOCKET-LIGHT BULB
21	WCI 5303001074
22	PAD-FILL (2)
23	WCI 5303208909
24	WCI 5318000402
25	NUT, SELF-THREADING, 1/8
26	WCI 5303001082
27	PLUG-HARNESS BOTTOM

No products found
