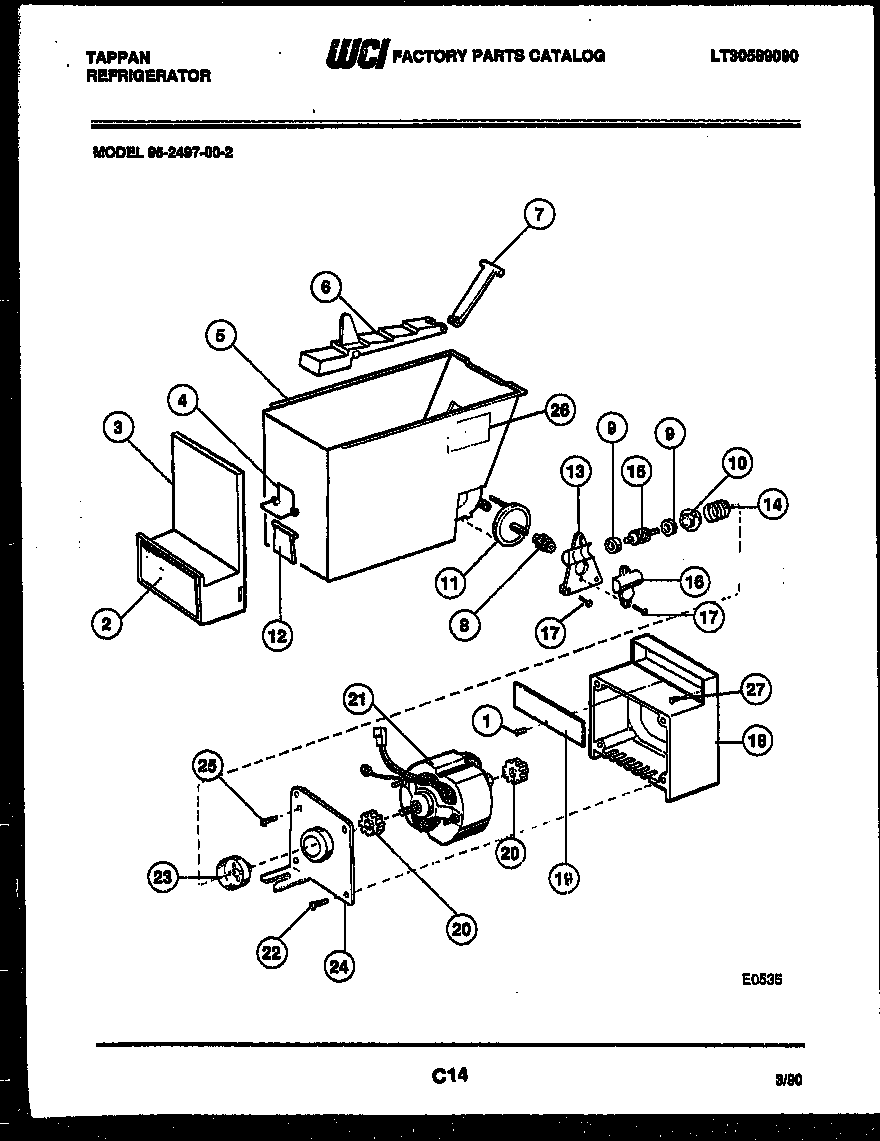

95-2497-23-02 08 – ICE DISPENSER

Products

Position	Product
*36865	WCI 3001247
2	LABEL-ICE CONTAINER
3	FRONT-ICE CONTAINER
4	SPRING-ICE DOOR
5	ICE CONTAINER
6	WCI 5303001159
7	WCI 5317769703
8	WCI G174702
9	WCI G177695
10	COUPLING-ICE DISP CONT
11	DISC, ICE RAM DRIVE
12	WCI 5317440701
13	HOUSING, ICE RAM DRIVE
14	SPRING-ILE DISP DRIVE
15	WCI G174406
16	COVER-HOUSING ICE RAM
18	HOUSING-ICE DISP MOTOR
19	COVER-ICE DISP MOTOR
20	GROMMET-ICE DISP MOTOR (2)
21	MOTOR-ICE DISP RAM
22	5304455650 Frigidaire Refrigerator Screw
23	COUPLING-ICE DISP MOTOR
24	BRACKET-ICE DISP MTR
26	LABEL-ICE DISPENSER
27	5304455852 Frigidaire Refrigerator Screw
