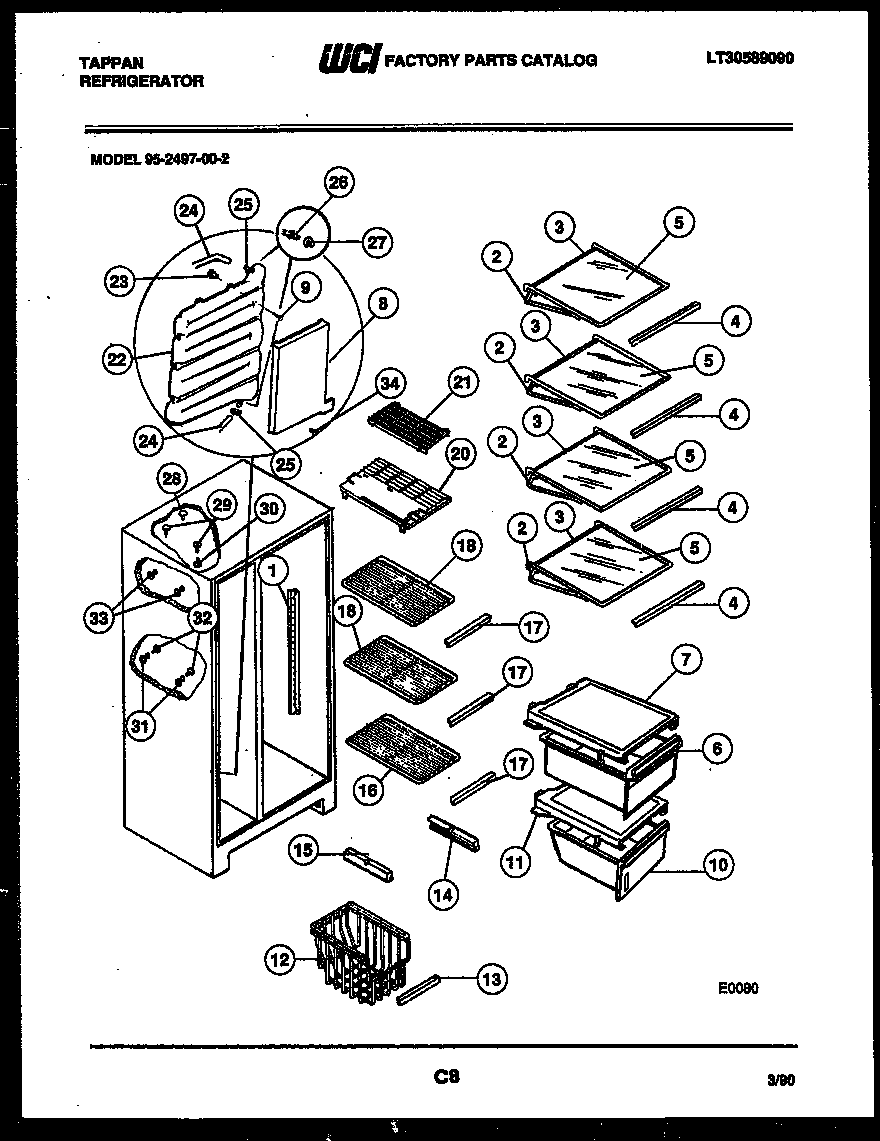

95-2497-45-02 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*36856CLIP, SHELF (8)
*368565304509705 Frigidaire Refrigerator Grommet
1A5304455852 Frigidaire Refrigerator Screw
1CHANNEL-RS & LS
2WCI G171608-08
3WCI G172436-16
4WCI 5303001175
5WCI G171654-15
6WCI G171260-15
7WCI G169711-04
8WCI 5308010332
9131420300 Frigidaire Screw
10WCI G171301-14
11WCI G169724-04
12BASKET
13WCI G168625-08
14HANGER-BASKET RS
15HANGER-BASKET LS
16SHELF-FREEZER-BOTTOM
17TRIM (3)
18SHELF-FREEZER-CENTER (2)
20WCI G174571-01
20ALABEL-SHELF-LOWER (NON-ILLUSTRATED)
21ALABEL-SHELF-UPPER (NON-ILLUSTRATED)
21WCI G174556-01
22WATER TANK
23WCI G163938
245308010366 Frigidaire Refrigerator P1-Water Inlet Tube
25CLAMP-SUCTION TUBE (NON-ILLUSTRATED)
26WCI G186058
27WCI G186057
28SUPPORT
29SUPPORT-1“ LONG SCREW, MOUNTED (2)
30SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
31SUPPORT, SHELF (8)
32SCREW-SUPPORT MOUNTING (4) (NON-ILLUSTRATED)
33ASCREW SUPPORT (2)
33SUPPORT, ICE MAKER (2)
345304455650 Frigidaire Refrigerator Screw
