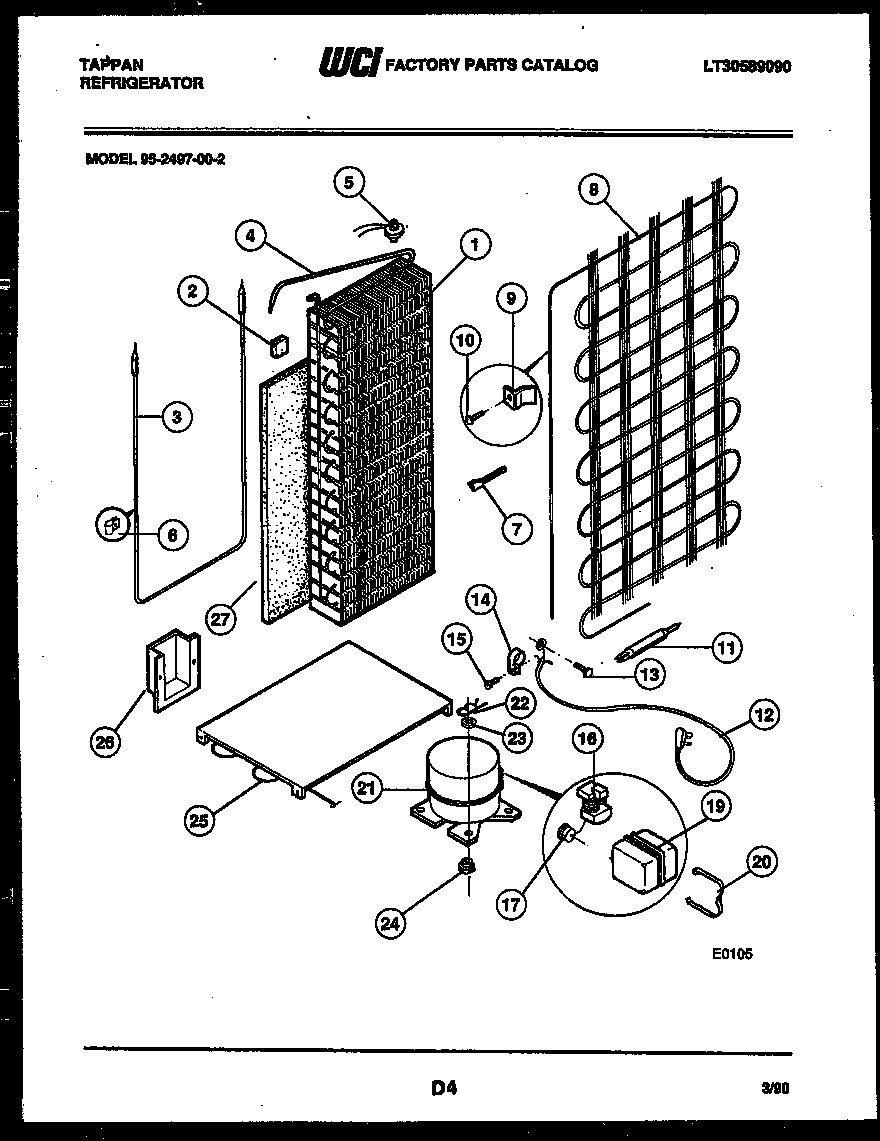

95-2497-45-02 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*36876	WCI 5300189379
*36876	WCI 5308009616
*36876	WCI 5308009619
1	WCI 5303916605
2	WCI G169493
3	WCI 5303007568
4	WCI 5308017565
5	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6	WCI G167363
7	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8	WCI 5300188643
9	BRACKET, COND. MTG (4)
9A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
11	5303305677 Frigidaire Replacement Filter Dryer Filters
11A	5308000133 Frigidaire Refrigerator Clamp
11B	218843801 Frigidaire Refrigerator Screw
12	CORD, SERVICE
14	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
15	5304455651 Frigidaire Refrigerator Screw
16	RELAY-TL
17	WCI 5308017526
20	5303006412 Frigidaire Refrigerator Cover Mounting Strap
21A	CAPACITOR
21	COMPRESSOR WITH ELECTRICALS
22	CLIP - COMPRESSOR MTG
23	WASHER, COMPRESSOR MOUNTING (4)
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25A	WCI G171111
25C	BRACKET-DEFROST PAN MTG (NON-ILLUSTRATED)
25B	5308000039 Frigidaire Refrigerator Screw
25	WCI 5308017118
26	WCI G183584
27	WCI G169641
