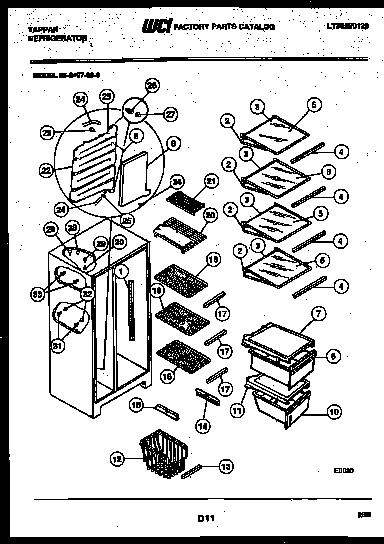

95-2497-45-03 05 – SHELVES AND SUPPORTS

Products

Position	Product
*39567	5304509705 Frigidaire Refrigerator Grommet
*39567	CLIP-CANTILEVER SHLF
1	CHANNEL-SHELF MTG (2)
1A	5304455852 Frigidaire Refrigerator Screw
2	FRAME-SHELF (3)
3	TRIM-SHELF REAR (4)
4	TRIM-SHELF FRONT (4)
5A	RETAINER-GLASS (3) (NON-ILLUSTRATED)
5	WCI 5303211546
6	WCI G171260-15
7	COVER – UPPER PAN
8	WCI 5308010332
9	131420300 Frigidaire Screw
10	PAN-STORAGE-LOWER
11	WCI 5316972401
12	WCI 5308001015
13	WCI G168625-08
14	WCI 5303001098
15	WCI 5303001099
16	SHELF-FREEZER-BOTTOM
17	TRIM (3)
18	SHELF-FREEZER-CENTER (2)
20A	WCI 5317770602
20	SHELF-FREEZER
21A	WCI 5317770601
21	SHELF-FREEZER (UPPER)
22	WATER TANK
23	SUPPORT-TANK (3)
24	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
25	CLAMP-SUCTION TUBE (NON-ILLUSTRATED)
26	CONNECTOR – TUBE
27	GROMMET-TANK
28	SUPPORT-SPEC BARREL (2)
29	SUPPORT-ICE ACCESS DR
30	SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
31	SUPPORT-SHELF (2)
32	SCREW (2)
33	WCI 5303001291
33A	SCREW (2)
34	5304455650 Frigidaire Refrigerator Screw
