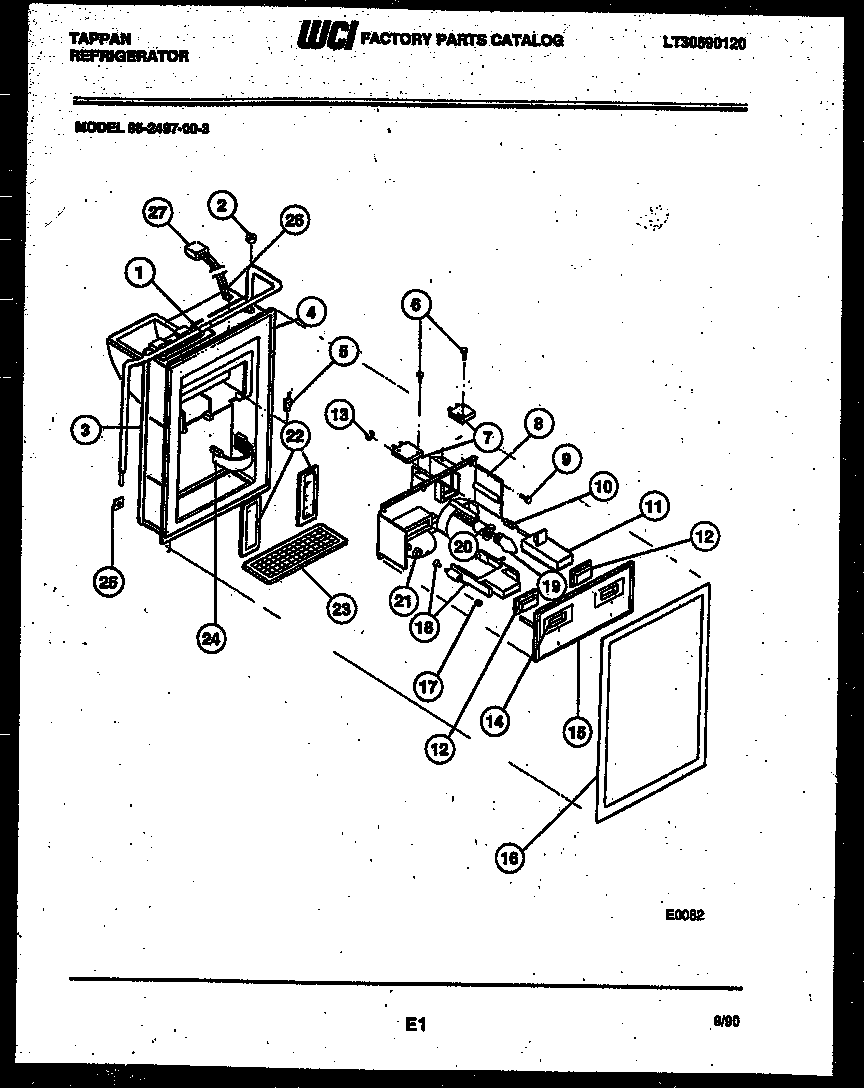

95-2497-45-03 07 – ICE DOOR, DISPENSER AND WATER TANK

Products

PositionProduct
*39572WCI 5318653301
1WCI 5300188233
2WCI 5303001066
3WCI 5308015588
4WCI 5303211547
5WCI 5308010326
6SCREW (4)
7WCI 5300185542
8PLATE-SWITCH MTG
9SCREW (4)
10SPRING-WATER ACTUATOR
11WCI 5303001077
12ALABEL-ACTIVATOR BUTTON (NON-ILLUSTRATED)
12BUTTON-ICE
13WCI 5300174411
14WCI G182654-03
15FRONT PANEL
16WCI 5317772106
17WCI 5303001081
18ACTUATOR & CUP ASSY-ICE
19WCI 5304506475
20SOCKET-LIGHT BULB
21WCI 5303001074
22PAD-FILL (2)
23WCI 5303208909
24WCI 5318000402
25NUT, SELF-THREADING, 1/8
26WCI 5303001082
27PLUG-HARNESS BOTTOM
